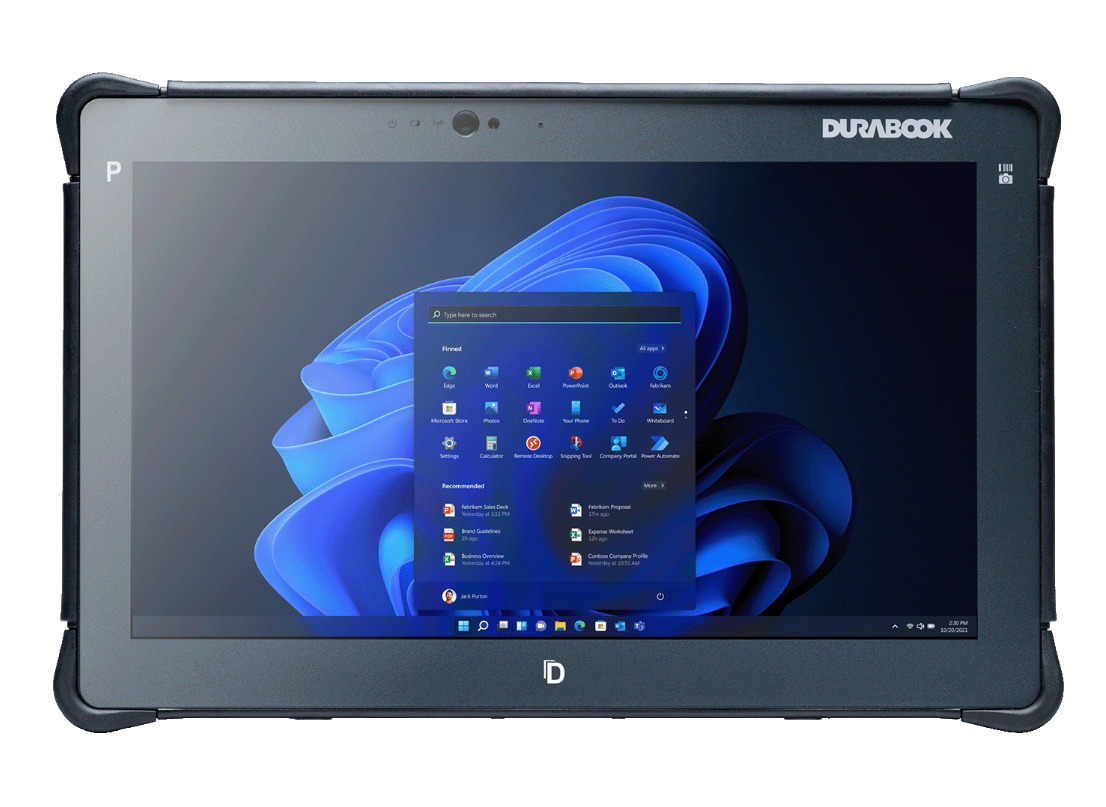

R11 Fully Rugged Tablet
The world’s most compact 11.6” fully rugged tablet, weighing only 1.2kg (2.65lbs) and measuring just 20mm thin.
The R11 redefines rugged mobility with a sleek design without compromising on durability or performance.

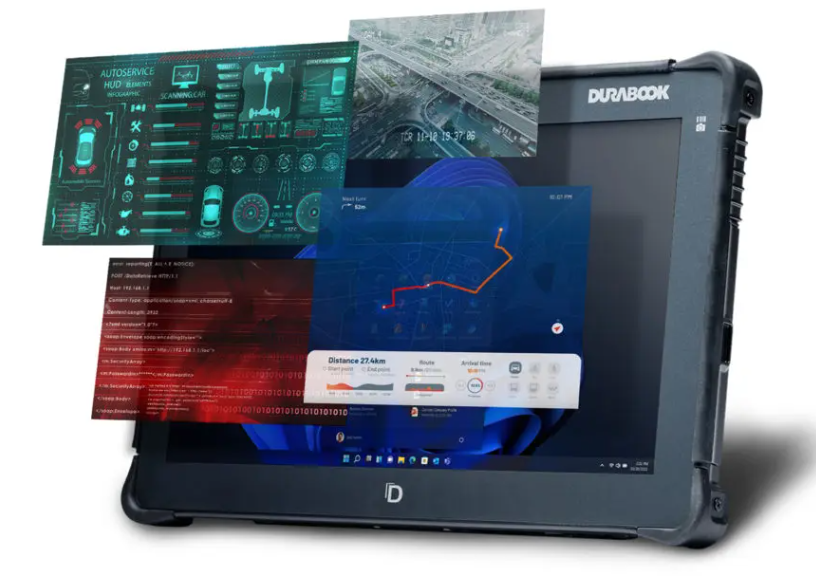

THRILLING PERFORMANCE
Powered by the latest 12th Gen Intel® Core™ processors and Intel® Iris® Xe graphics.
The R11 is built to streamline complex workflows and handle data-intensive applications effortlessly in the field.

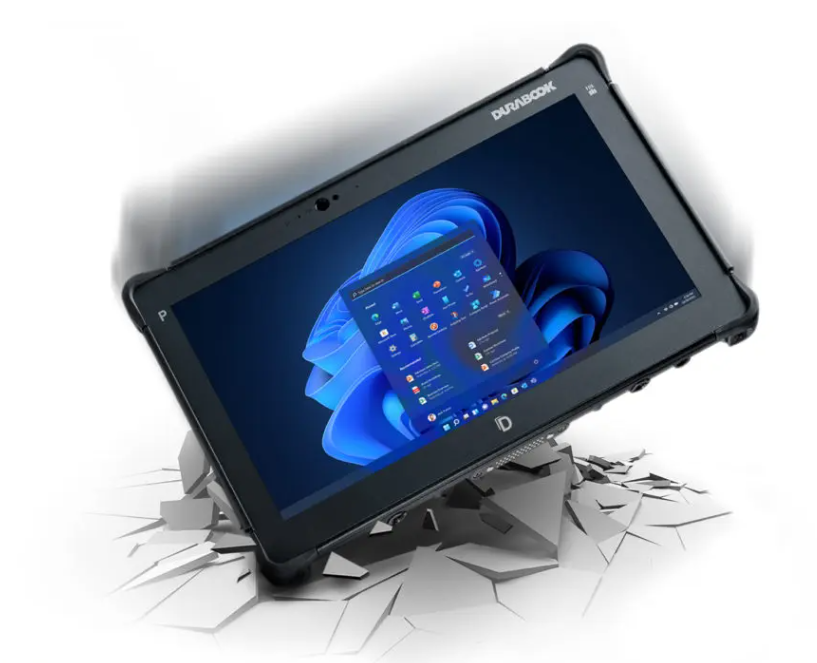

ROCK-SOLID DESIGN
Certified with MIL-STD-810H and IP66 rating, the R11 offers maximum protection against dust, water, and accidental drops.
Designed to withstand drops from 4 feet and extreme temperatures, ensuring reliability in the toughest environments.

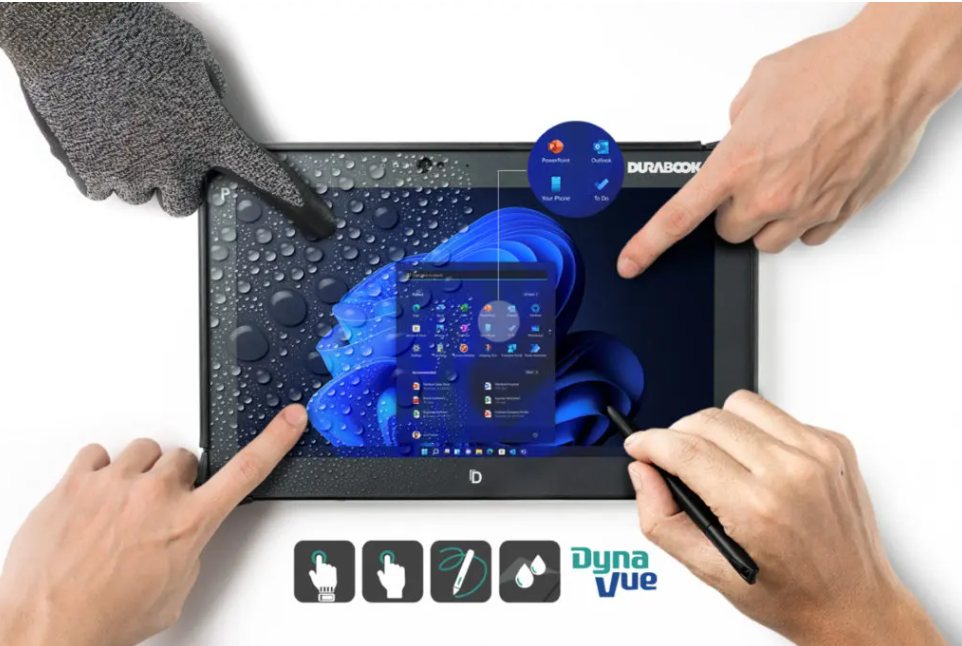

SHARP VISUALS
The R11 features a brilliant 11.6” Full HD (1920 x 1080) LCD with DynaVue® technology up to 1,000 nits brightness.
Capacitive multi-touch screen supports glove, stylus, water, and finger modes for clear viewing in direct sunlight.

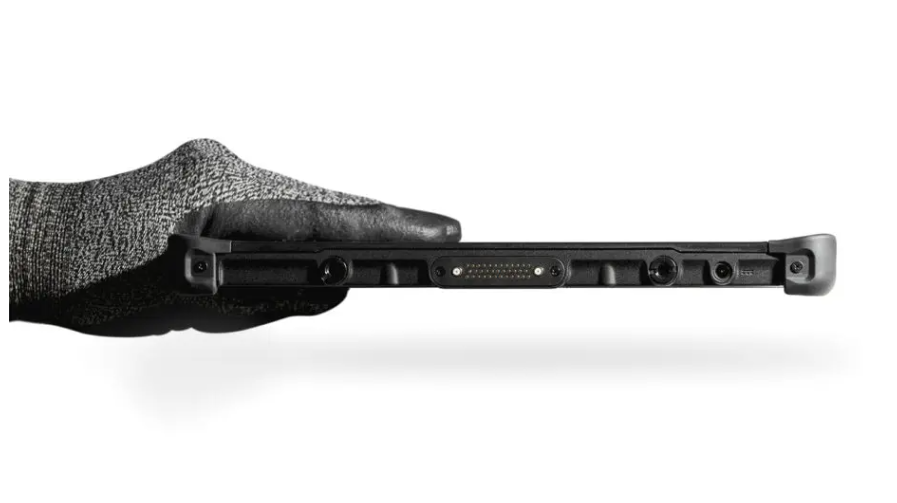

THIN, LIGHT AND STREAMLINED
The R11 is just 20mm thick and 1.2kg, making it the most compact fully-rugged tablet in its class.
Its sleek, streamlined design adds a modern look while maintaining full rugged durability.

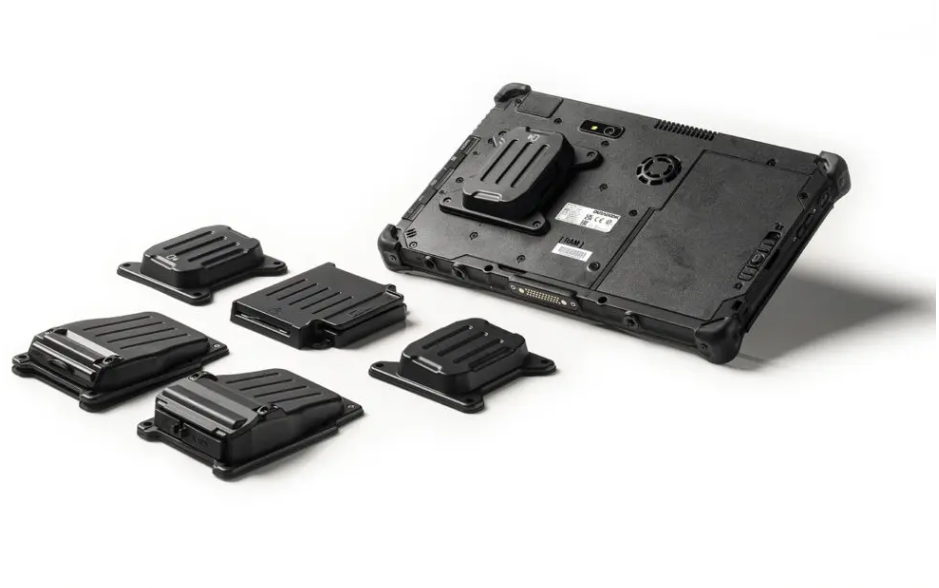

ENDLESS EXPANSION
The R11 offers versatile expansion options including barcode reader, RJ-45, RS-232, RFID, and smart card reader.
This flexibility allows customization for specific professional needs in field service, retail, and logistics.
| MIL-STD 810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity) |
- 4' (1.2m) Drop (26 faces)
- IP 66 certified (Water and Dust)
- Magnesium alloy chassis
- MIL-STD-461F certified
Port covers
| Display | 11.6” FHD (1920 x 1080) Optional 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen User selectable touch mode for Finger/Water, Glove, or Stylus |
| Operating System | Windows® 11 Pro 64-bit |
| Processors | Intel® Core™ i7-1255U vPro™ (12MB Cache, up to 4.7 GHz, 2P+8E cores) Intel® Core™ i5-1235U vPro™ (12MB Cache, up to 4.4 GHz, 2P+8E cores) |
| Memory | 1 slot 8GB up to 32GB (4800MHz DDR5) |
| Storage | 256GB NVMe PCIe SSD Optional 512GB / 1TB PCIe SSD |
| Graphics | Intel® UHD Graphics |
| Camera | Integrated 2.0 MP front-facing camera Optional 11.0 MP auto-focus rear camera with flash |
| Expansion Options | Optional 1D/2D Barcode Reader Optional Expansion Modules: RJ-45 / RFID (NFC) / Smart Card Reader / MSR+Smart Card / RJ-45+RS-232+Smart Card |
| I/O Ports | Thunderbolt 4 x 1 USB 3.2 Gen2 (type A) x 1 Micro HDMI x 1 Audio in/out (combo jack) x 1 microSD card (microSDXC) x 1 Docking connector (35-pin Pogo) x 1 Nano SIM card x 1 DC-In jack x 1 |
| Communications | Intel® Wi-Fi 6E AX211 (802.11 ax) Bluetooth® V5.3 Optional Dedicated GPS Optional 4G LTE or 5G mobile broadband |
| Power | AC adapter: 100-240V, 50Hz-60Hz, 65W Main battery Li-Ion, 11.1V, 3950mAh (8.5 hours) Optional Hi-Cap battery Li-Ion 11.1V, 6900mAh (15 hours) |
| Environment | Operating: -20°C ~ 60°C / -4°F ~ 140°F Storage: -51°C ~ 71°C / -60°F ~ 160°F Humidity: 5% ~ 95% |
| Dimensions & Weight | 299 mm (L) x 192 mm (W) x 20 mm (H) 1.2 kg (2.65 lbs) |
COMPATIBLE ACCESSORIES
Office Dock
Vehicle Light Dock (Dual RF / No RF)
Folio Case
Expansion Module (RJ-45 / Smart Card / RFID)
Battery Charger - 2 bays
Battery Charger - 8 bays
Spare Main Battery (3950mAh)
Spare Hi-Cap Battery (6900mAh)
Rotating Hand Strap
X-Strap
Shoulder Strap (2 Point or 4 Point)
Car Adapter (11-24V DC)
Spare Stylus & Tether
USB-C AC Adapter
