Z14I Rugged Laptop
Powered by an Intel® Core™ Ultra processor with integrated NPU AI engine, the Z14I fully rugged laptop unlocks new AI PC experiences to boost productivity, security and efficiency.
Built to withstand even the harshest environments, the Z14I’s IP66 rating protects against dust and water ingress.

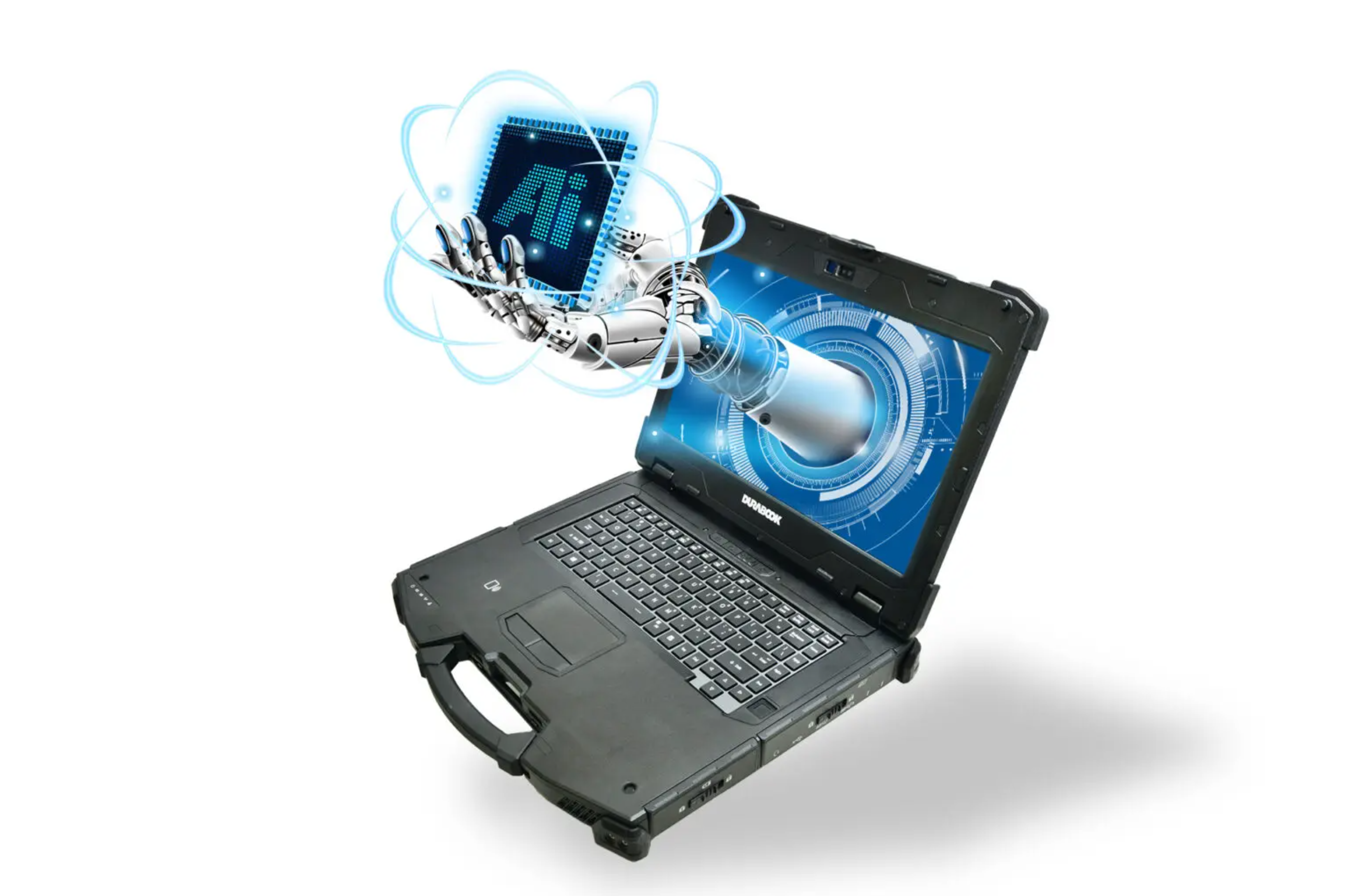

UNLOCK NEW AI PC EXPERIENCES
The next wave of rugged computing is here. The Z14I empowers organizations within the utilities, field services, manufacturing and security sectors.
Equipped with an integrated Intel® Core™ Ultra neural processor unit (NPU) for AI acceleration.
AI COMPUTING POWER

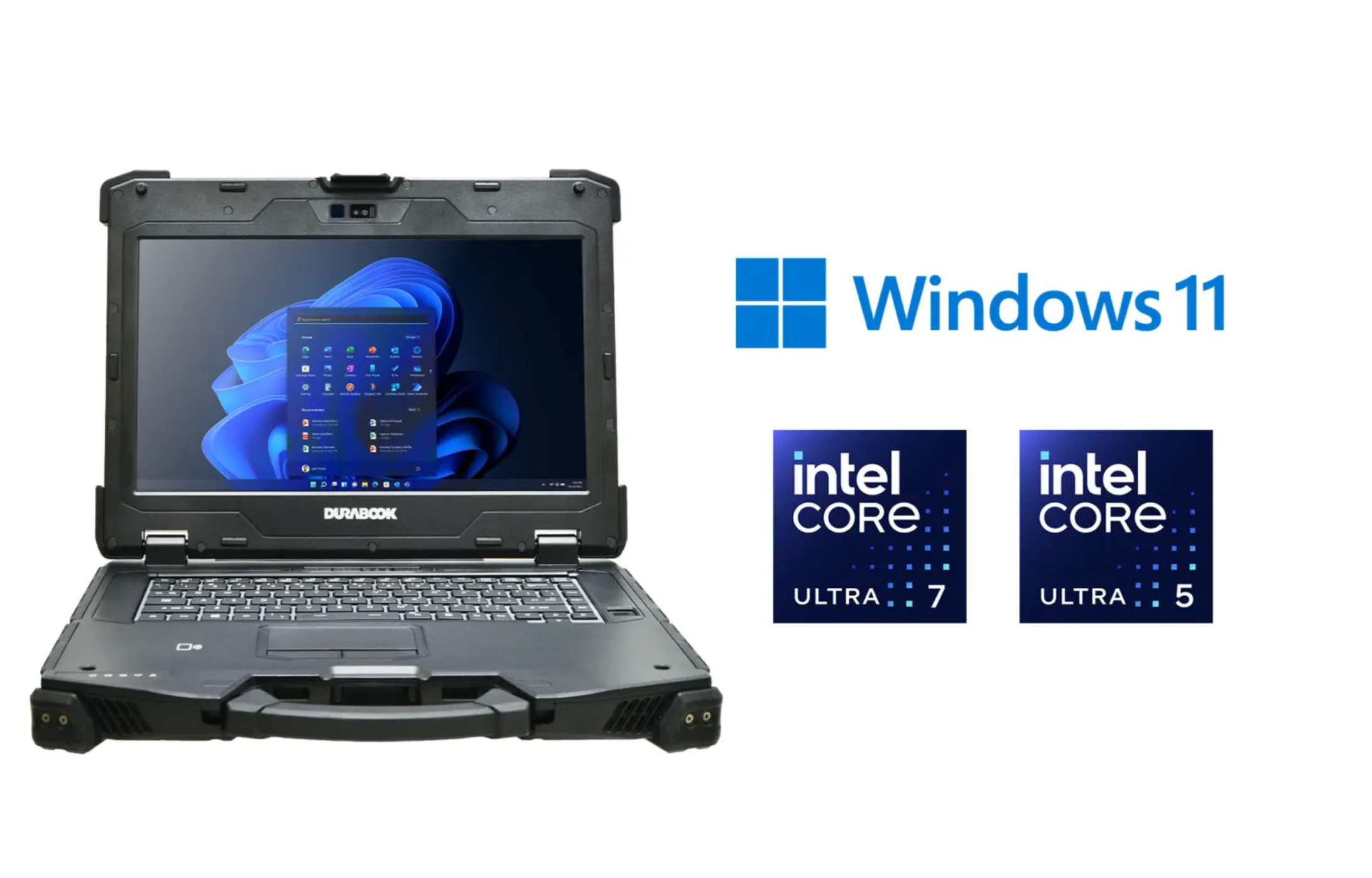

Powered by the latest Intel® Core™ Ultra 5/7 processor featuring Intel® AI Boost and Windows 11.
With the option of a dedicated NVIDIA® RTX A500, the Z14I can be transformed into the ultimate solution for graphics rendering.
BUILT FOR ALL ENVIRONMENTS
With invincible mechanical design, the Z14I can seamlessly adapt to any environment, from sub-freezing -29°C to extreme heat of 63°C.
MIL-STD-810H-certified, resistant to salt fog and fungus, IP66 certified.
SUPERB CONNECTIVITY & SECURITY

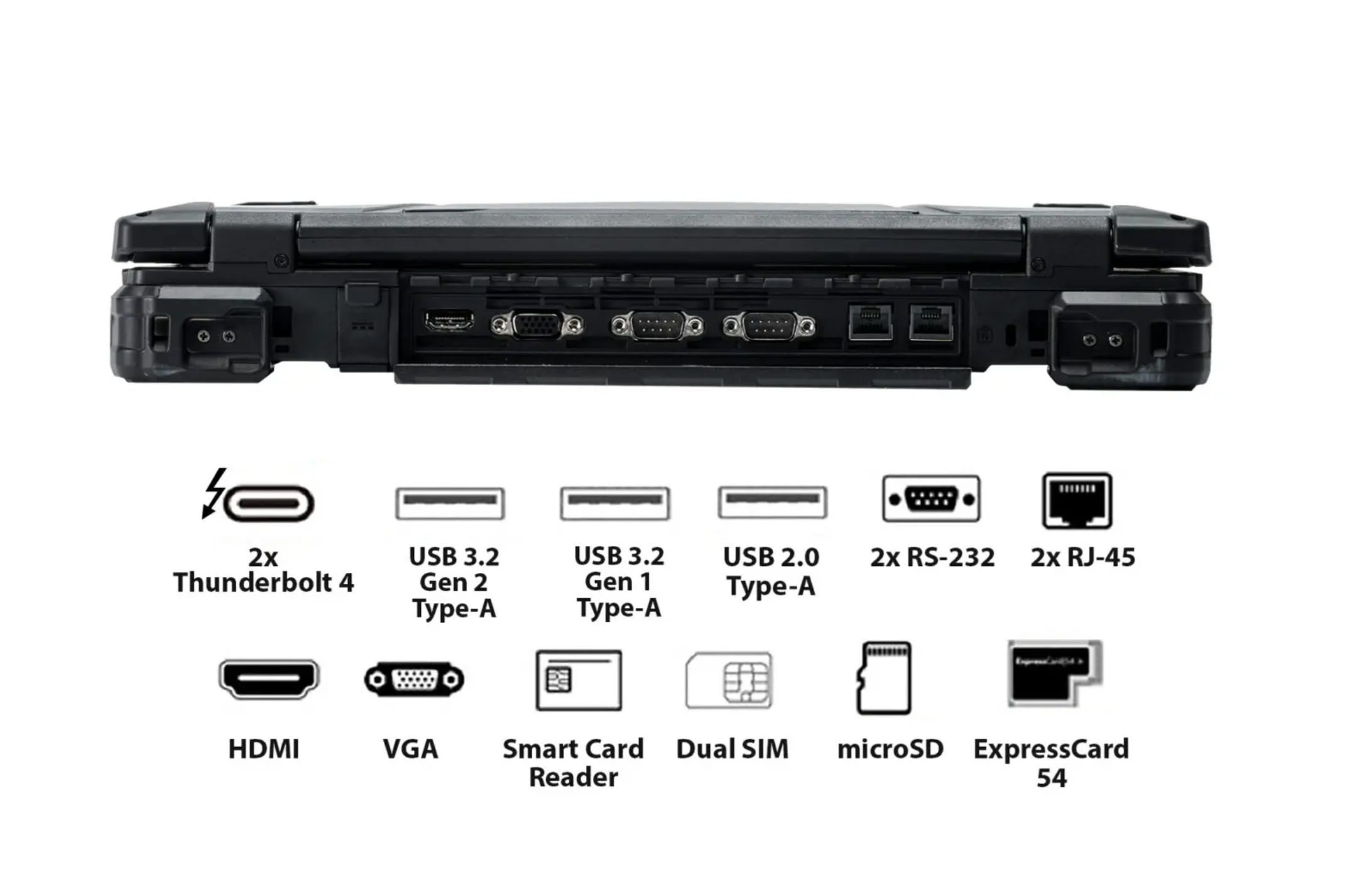

The ultimate in smart device versatility: two Thunderbolt™ 4, two RJ-45 ports, two RS-232 serial ports, ExpressCard 54.
Advanced security features include multi-factor authentication and smart card reader.
ENDLESS CUSTOMIZATION

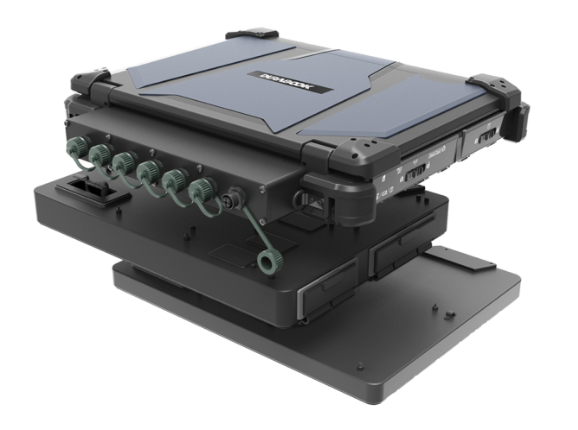

The Z14I’s expansion box allows it to transform from a workstation to a portable server.
Endless configuration possibilities guarantee users the power and flexibility they need.
| MIL-STD 810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, Explosive Atmosphere, Solar Radiation, Salt Fog, Fungus Resistance) |
- MIL-STD 461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)
- Optional ANSI/UL 121201, Class I, Division 2
- 6' drop 26 faces
- IP 66 certified
- Magnesium alloy chassis
- Port covers
- Removable quick-release battery
- Two removable quick-release storage drives
- Sunlight readable display
- Optional swappable battery technology
| Display | 14.0” FHD (1920 x1080) 1200 nits DynaVue® sunlight readable display with capacitive multi-touch screen User selectable touch mode for Finger/Water, Glove, or Stylus programmable function |
| Operating System | Windows® 11 Pro 64-bit |
| Processors | Intel® Core™ Ultra 7 165U / 155U / 135U / 125U (12MB Cache, up to 4.9 GHz, 12 cores, 14 threads with Intel® AI Boost NPU) Intel® Core™ Ultra 7 155U (12MB Cache, up to 4.8 GHz, 12 cores, 14 threads with Intel® AI Boost NPU) Intel® Core™ Ultra 5 135U (12MB Cache, up to 4.4 GHz, 12 cores, 14 threads with Intel® AI Boost NPU) Intel® Core™ Ultra 5 125U (12MB Cache, up to 4.3 GHz, 12 cores, 14 threads with Intel® AI Boost NPU) |
| Memory | 2 slots 16GB up to 64GB (5600MHz DDR5) |
| Storage | 256GB NVME PCIE SSD (Optional 512GB/1TB/2TB) Optional 512GB/1TB/2TB PCIE SSD Optional OPAL 2.0 SSD Optional 2nd storage NVME PCIE SSD Optional 3rd storage SATA SSD |
| Graphics | Intel® Graphics Optional NVIDIA® RTX A500 |
| Camera | Integrated 2.0 MP web-cam with shutter design Optional 5.0 MP IR camera for Windows Hello |
| Audio | Integrated microphone Intel® High Definition Audio Compliant Integrated speaker x 2 Keyboard volume and mute controls |
| Media Bay (One Option Only) |
Optional DVD super Multi Optional 2nd battery Optional SATA SSD |
| Expansion Box | Optional PCI-Express 3.0 (2 slots) Optional discrete VGA Optional storage extension with RAID 0/1/5/10 Optional military-grade connectors |
| I/O Ports | Thunderbolt 4 (type C) x 2 USB 3.2 Gen2 (type A) x 1 USB 3.2 Gen1 (type A) x 1 USB 2.0 (type A) x 1 Audio in/out (combo jack) x 1 microSD card (microSDXC) x 1 10/100/1000 Ethernet (RJ45) x 2 VGA port (D-sub,15-pin) x 1 HDMI 2.1 port (type A) x 1 Serial port (RS232/RS422/RS485: D-sub,9-pin) x 2 Docking connector (41-pin Pogo) x 1 Dual SIM (Nano SIM & eSIM) Smart card reader x 1 ExpressCard 54 x 1 DC-In jack x 1 Optional RF antenna pass-through for GPS, WWAN, and WLAN |
| Keyboard & Input | 2 user-definable keys (P1/P2) Standard membrane keyboard with LED backlight |
| Communications | Intel® vPro™ Technology Intel® Wi-Fi 7 BE200 (802.11 be) Bluetooth® V5.4 Optional dedicated GPS module (UBLOX-NEO-M9N) Optional 4G LTE multi-carrier mobile broadband Optional 5G Optional RF antenna pass-through for GPS, WWAN, and WLAN |
| Security | Intel® vPro™ Technology Secured-Core PC TPM 2.0 NIST BIOS compliant Easy removable SSD Smart card reader Stealth mode Night vision mode Kensington lock Optional Windows Hello Optional fingerprint scanner Optional LF/HF-RFID (NFC) reader |
| Power | AC adapter: 100-240V, 50Hz-60Hz, 90W Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA Main battery Li-Ion, 10.8V, 6900mAh, 12.5 hours3 Optional 2nd battery Li-Ion 10.8V, 4700mAh, 9 hours3 Optional bridge battery: 5 minutes swap time4 |
| Environment | Temperature Operating: -29°C ~ 63°C / -20°F ~ 145°F Storage: -51°C ~ 71°C / -60°F ~ 160°F Humidity: 5% ~ 95% |
| Dimensions & Weight | 356 mm (L) x 280 mm (W) x 50 mm (H)5 3.6 kg5 |
COMPATIBLE ACCESSORIES
120W AC Adapter with power cord
3rd SSD for media bay
90W AC Adapter
Battery Charger - 2 bays
Battery Charger - 8 bays
Car Adapter (11-24V DC 90W)
Expansion Box - discrete VGA
Expansion Box - Military-grade Connectors
Expansion Box - PCI-Express (2 slots)
Expansion Box - portable Server
Office Dock with AC Adapter Z14I
Power Cable Adapter (Military-grade)
Removable 2nd Battery for media bay
Removable Super Multi DVD for media bay
Screen Protector Film Z14I
Shoulder Strap (2 Point)
Spare 256GB-2TB PCIE SSD with canister Z14I
Spare Main Battery Z14I
Spare Stylus & Tether for capacitive touch
USB 3.0 Docking Station
USB-C AC Adapter with power cord
USB-C Docking Station
Vehicle Dock with Tri-RF Pass-through (PMT)
Vehicle Dock without Tri-RF Pass-through (PMT)
