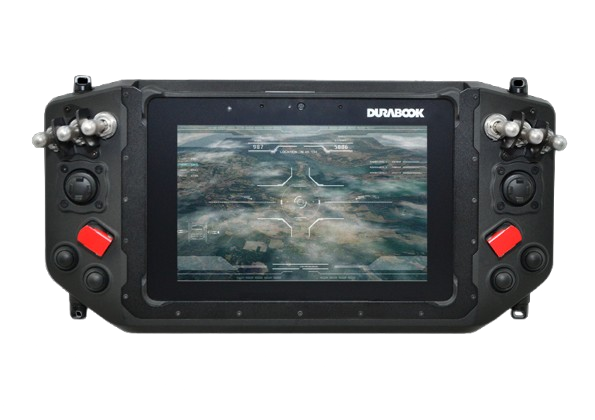

GC-R8 Ground Control Station
The GC-R8 is a versatile, rugged ground control station designed for UAV and robotic operations.
Built on the powerful R8 tablet, it combines extreme durability with precise control capabilities for mission-critical tasks.

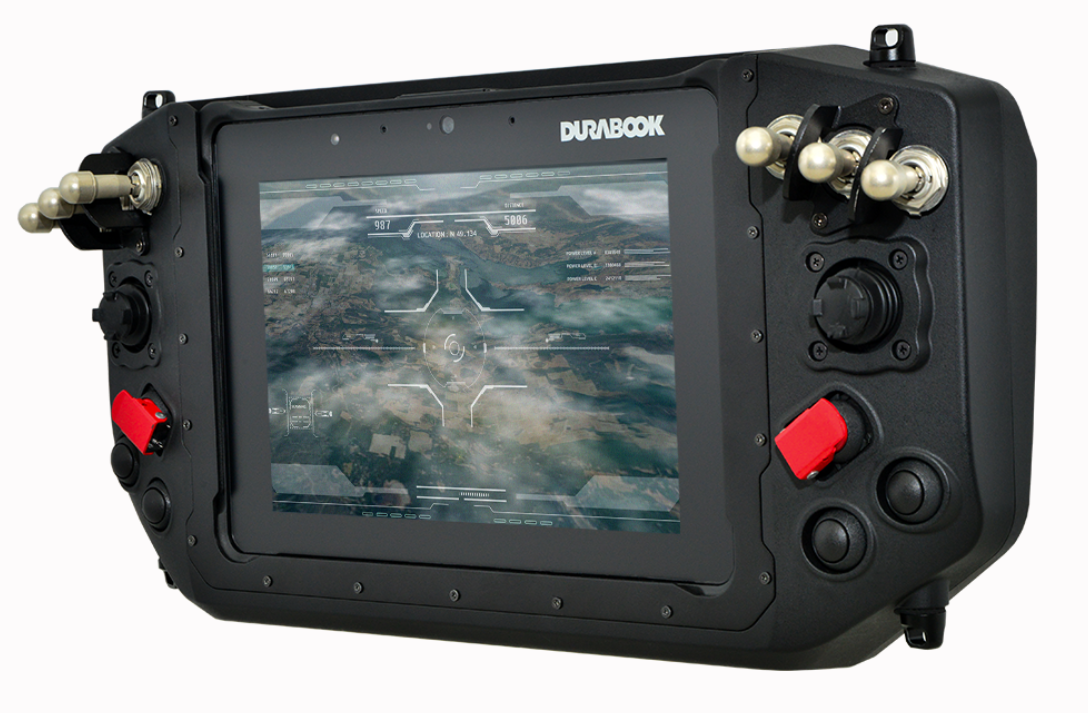

PRECISION CONTROL
Features many customizable I/O channels, supporting Hall Effect joysticks, D-pads, and toggle switches.
The modular design allows operators to tailor the interface for specific flight paths, camera zooms, or robotic movements.
MISSION READY
Certified with MIL-STD-810H and IP66 rating, the GC-R8 is built to withstand dust, water, and drops.
Operates reliably in extreme temperatures from -20°C to 60°C with its fanless Coolfinity™ thermal design.
SUPERIOR VISIBILITY
Equipped with an 8.0” DynaVue® sunlight-readable display with up to 800 nits brightness.
Ensures clear visibility of telemetry data and video feeds even in direct sunlight or challenging lighting conditions.
SECURE COMMUNICATION
Features military-grade M12 LAN and USB connectors for secure, vibration-proof connections.

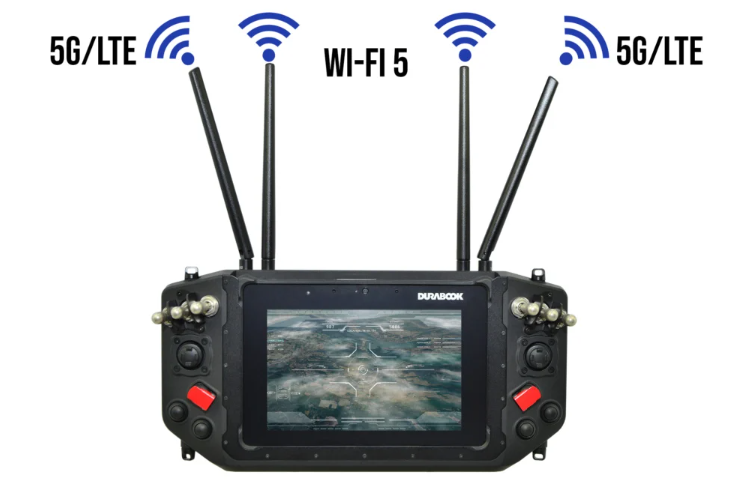

Broad-spectrum antenna design supports frequencies from 600 MHz to 7125 MHz for uninterrupted data transmission.

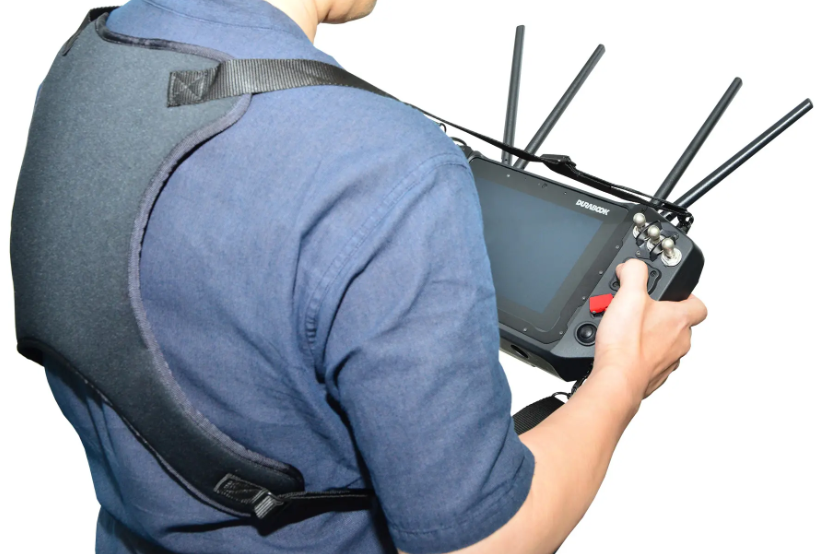

ERGONOMIC DESIGN
Weighing just 1.2kg (approx), the GC-R8 is designed for field portability and extended operations.
Supports neck straps and harnesses to reduce operator fatigue during long missions.
| MIL-STD 810H certified |
- IP 66 certified
- 6' Drop 26 faces (R8 Tablet)
| Control | LEFT SIDE • Hall Effect Joystick x 1 or optional Direction-Pad x 1 • Push Button with Flip-Guard Cover x 1 • Push Button x 2 • Push Button (rear side) x 1 • Optional Toggle Switch (with Guard Walls) x 3 (ON-OFF-ON switch with optional lock design) • Optional Thumb Wheel (rear side) x 1 RIGHT SIDE • Hall Effect Joystick x 1 • Push Button with Flip-Guard Cover x 1 • Push Button x 2 • Push Button (rear side) x 1 • Optional Toggle Switch (with Guard Walls) x 3 (ON-OFF-ON switch with optional lock design) • Optional Thumb Wheel (rear side) x 1 |
| Controller Interface | 2 x Analog Joysticks (Hall Effect) 4 x 2-Position Switches 6 x Push Buttons Fully customizable HID USB interface |
| Processors | STM32 Series |
| I/O Interfaces | RJ-45 10/100/1000 (M12 Mil-Connector) x 1 USB 2.0 (M12 Mil-Connector) x 1 DC-IN (M12 Mil-Connector) x 1 Optional 2x Antenna Ports (WLAN) Optional 2x Antenna Ports (WWAN) |
| Expansion Slot | VESA 75/100 standard mounting hole pattern 75mm x 75mm & 100mm x 100mm Stylus Holder mounting holes |
| Power | 19V (DC) - powered by R8 Tablet (Fits also R8 Tablet with hi-cap battery) |
| Accessories | DC-IN (M12 Connector) Cable D-Ring Screws (4x) Optional 4-Point Shoulder Strap Optional 2-Point Shoulder Strap Optional Stylus with Tether Optional Stylus Holder |
| Power | AC adapter: 100-240V, 50Hz-60Hz, 65W Main battery Li-Ion, 3.8V, 3600mAh Optional Hi-Cap battery 7200mAh |
| Environment | Operating: -20°C ~ 60°C / -4°F ~ 140°F Storage: -51°C ~ 71°C / -60°F ~ 160°F Humidity: 5% ~ 95% |
| Dimension & Weight | 365 mm (L) x 180 mm (W) x 69.9 mm (H) <1.2 kg |
COMPATIBLE ACCESSORIES
Shoulder Strap (2-Point)
Shoulder Strap (4-Point)
D-Ring Screws (4x)
Pen/Stylus Holder
Spare Stylus & Tether
