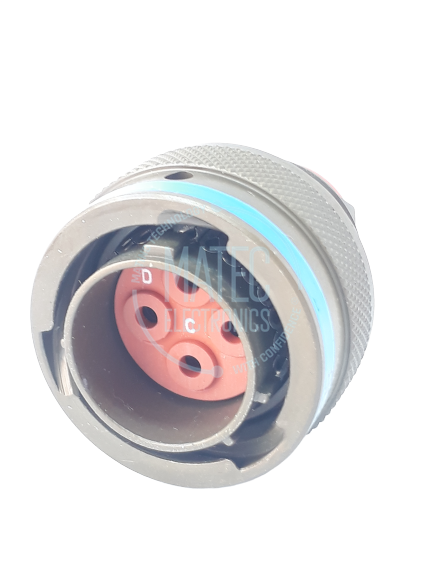

IMB15W14-4P

MIL-DTL-26482 Series 2 connectors offer bayonet coupled, rugged rear insertable and releasable crimp contact technology with high density contact arrangements. These connectors provide almost twice the number of contacts in just half the size of a standard connector. Meeting and exceeding MIL-DTL-26482 Series 2, these cylindrical connectors are used to overcome harshest environment application requirements with environmental resistance and EMI shielding features.
Category
Brand
Stock Code
IMB15W144P
Stock Amount
1 Pcs
ORDER NOW
Please share your contact details as below. Our Sales team will get in contact with you immediately after you fill in the form in order to assist you with the ordering procedure.
*
*
*
*
Connector Series : MIL-DTL-26482 Series II
Connector Shell Style : Straight Plug
Connector Mounting Type : Cable Mount
Connector Mating Style : Bayonet
Shell Material : Aluminum
Shell Plating : Olive Drab Cadmium
Shell Size and Insert Arrangement : 14-4
Number of Contacts and Contact Size : 4 X 12 AWG
Contact Termination Type : Crimp
Contact Gender : Pin
Operating Temperature : -55°C // +200°C
Keying Rotation : N
Mating Cycle : 500
RoHS : YES
Weight : -
IP Class : IP67
