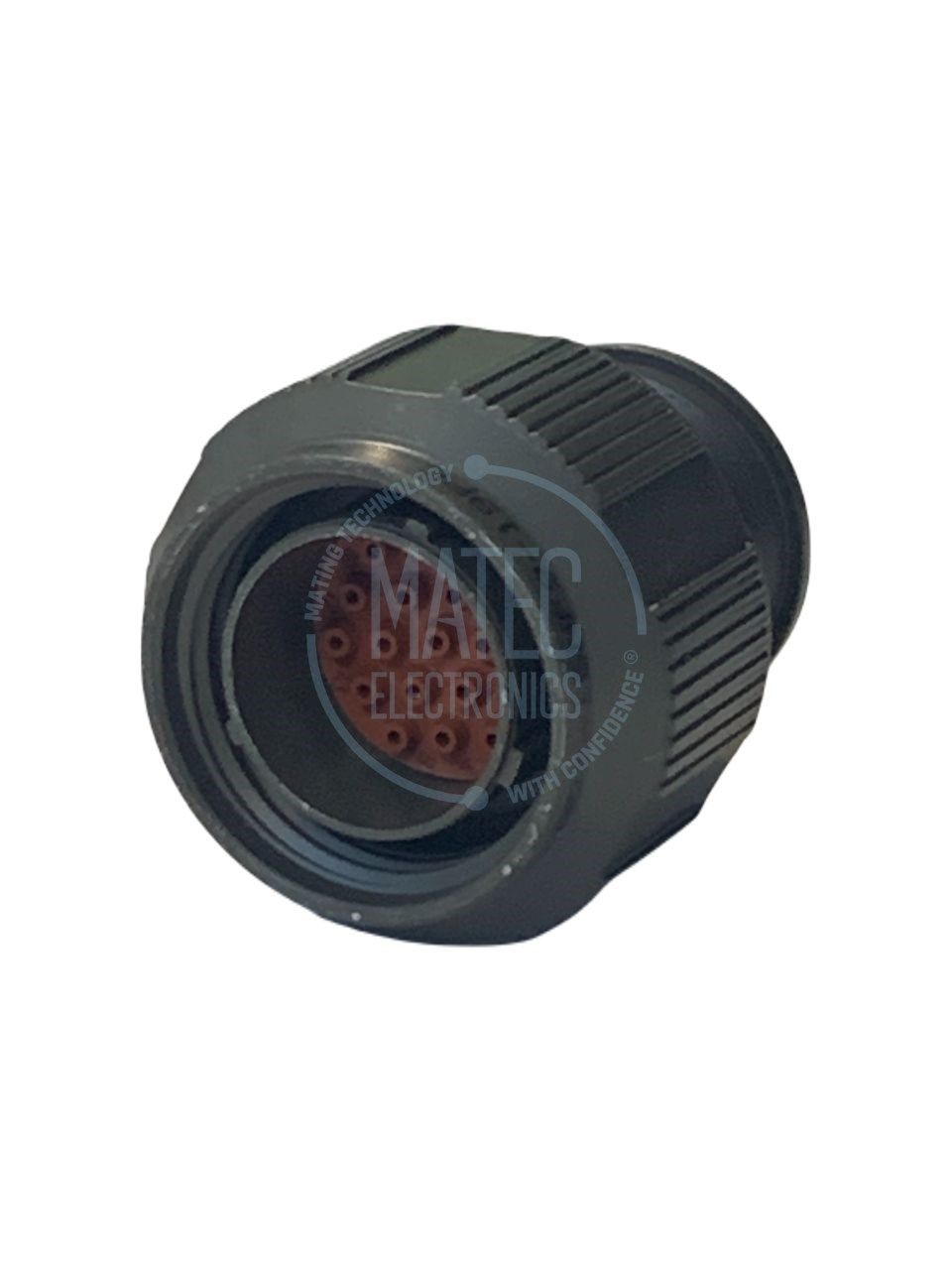

2M801-007-16NF9-19PC

Amphenol 2M ( Mighty Mouse ) Micro38999 Connector Series offers highest performance for applications requiring reduced size, weight and harshest environment resistance. This smaller, high density, lightweight connector series is designed and tested to Mil-Spec standards and comparable to MIL-DTL-38999 with reduced mechanical dimensions.
Category
Brand
Stock Code
2M80100716NF919PC
Stock Amount
12 Pcs
ORDER NOW
Please share your contact details as below. Our Sales team will get in contact with you immediately after you fill in the form in order to assist you with the ordering procedure.
*
*
*
*
Connector Series : 2M Mighty Mouse Series
Connector Shell Style : Plug with Integral Backshell
Connector Mounting Type : Cable Mount
Connector Mating Style : Threaded
Shell Material : Aluminum
Shell Plating : Olive Drab Cadmium
Shell Size and Insert Arrangement : 9-19
Number of Contacts and Contact Size : 19 X 23 AWG
Contact Termination Type : Crimp
Contact Gender : Pin
Operating Temperature : -65°C // +150°C
Keying Rotation : C
Mating Cycle : 2000
RoHS : NO
