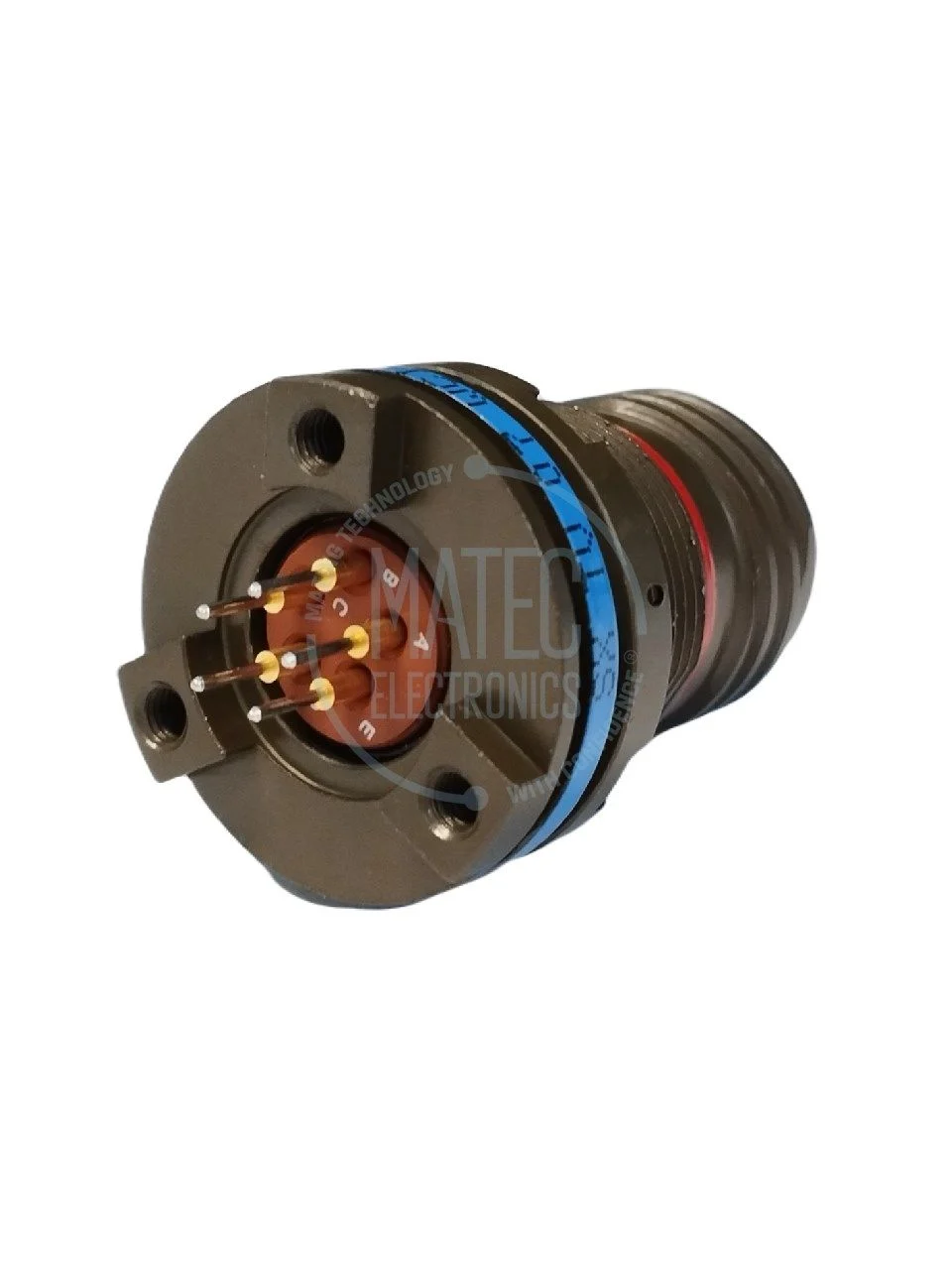

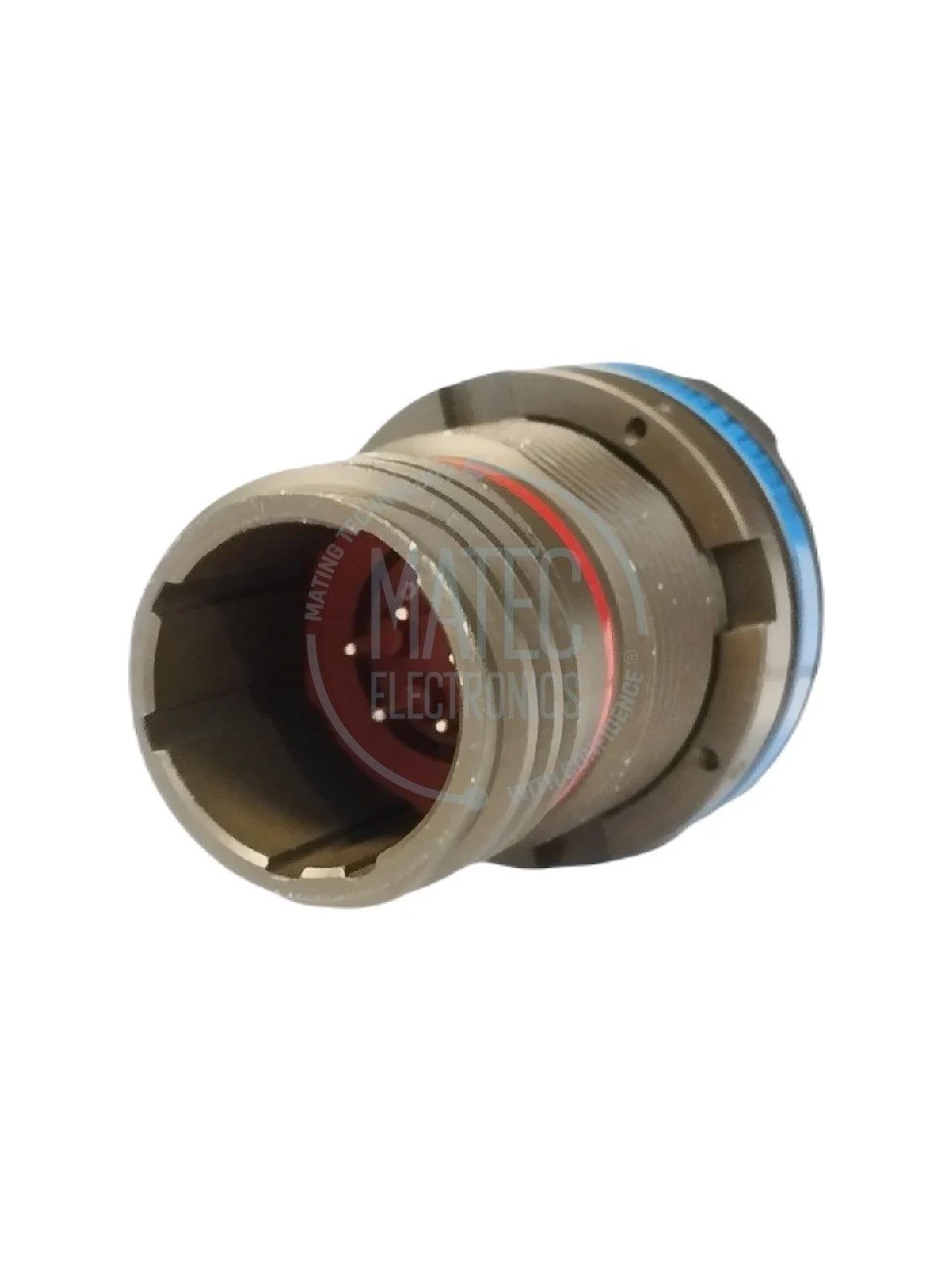

TV07WCI-11-5P-F058
Amphenol ® Tri-Start MIL-DTL-38999* Series III Connectors offer the highest performance capabilities for both general duty and severe environment applications. Meeting or exceeding MIL-DTL-38999 Series III requirements, the connectors provide better environmental resistance and EMI performance with countless options. In addition to these increased performance capabilities, TV Series, 38999, connectors also provide rugged vibration/shock and quick coupling features with hermeticity options.
0.00 ₺
0.00 ₺
Brand :
AMPHENOL
Stock Code :
TV07WCI115PF058
Stock Amount :
10
pcs
| Brand | AMPHENOL |
| Connector Series | MIL-DTL-38999 Series III |
| RoHS | NO |
| Connector Shell Style | Receptacle |
| Connector Mounting Type | Jam-Nut |
| Connector Mating Style | Threaded |
| Shell Material | Aluminum |
| Shell Plating | Olive Drab Cadmium |
| Shell Size and Insert Arrangement | B(11)-5 |
| Number of Contacts and Contact Size | 5 X 20 AWG |
| Contact Termination Type | PC-Tail |
| Contact Gender | Pin |
| Operating Temperature | -65°C // +175°C |
| Keying Rotation | N |
| Mating Cycle | 500 |
