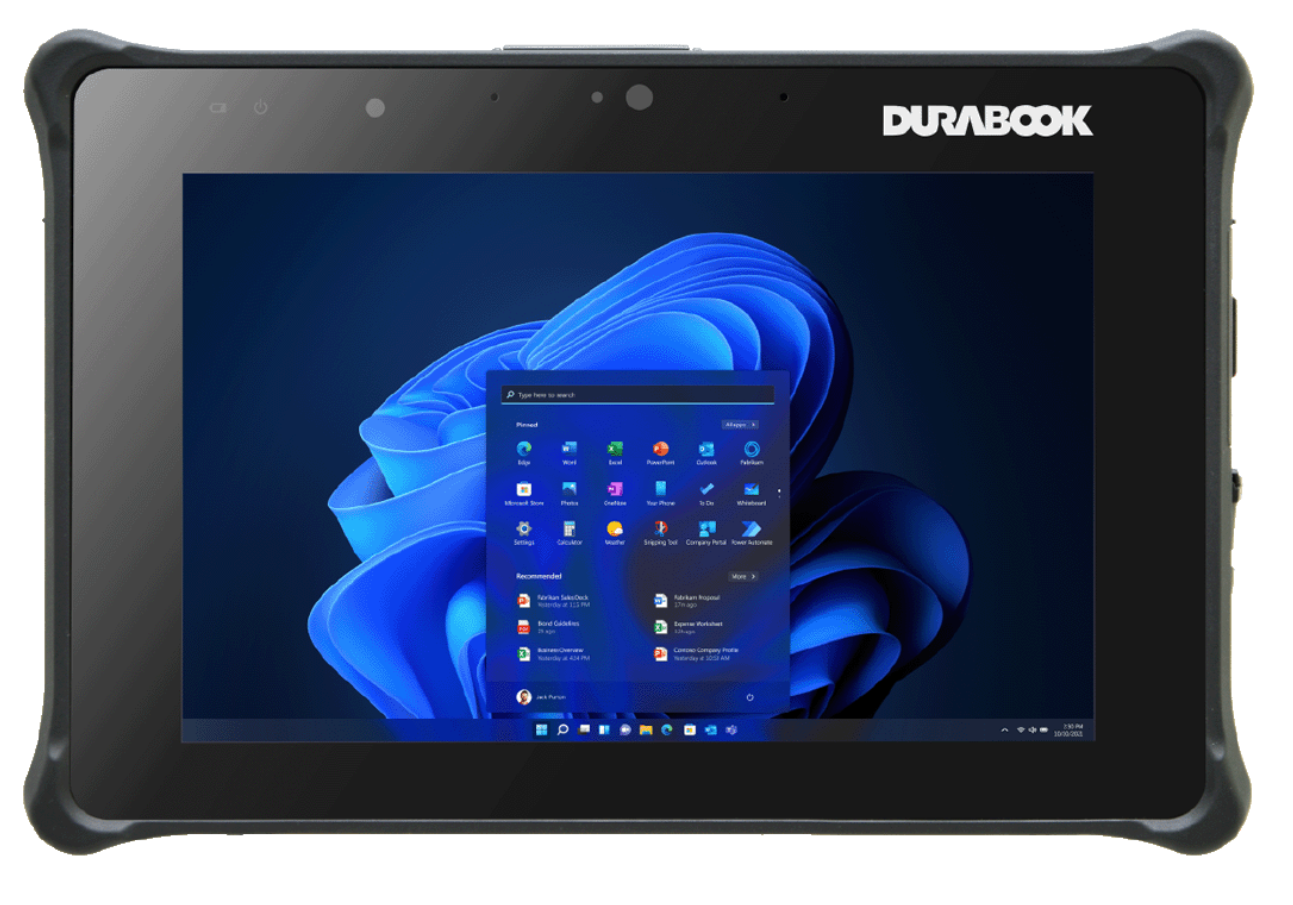

R8 Rugged Tablet

R8 Fully Rugged Tablet

Featuring an 8” LCD display with Durabook’s proprietary DynaVue® technology for exceptional viewing.

Weighing just 0.86kg, the R8 sports a fanless design and offers the ultimate blend of functionality and portability.

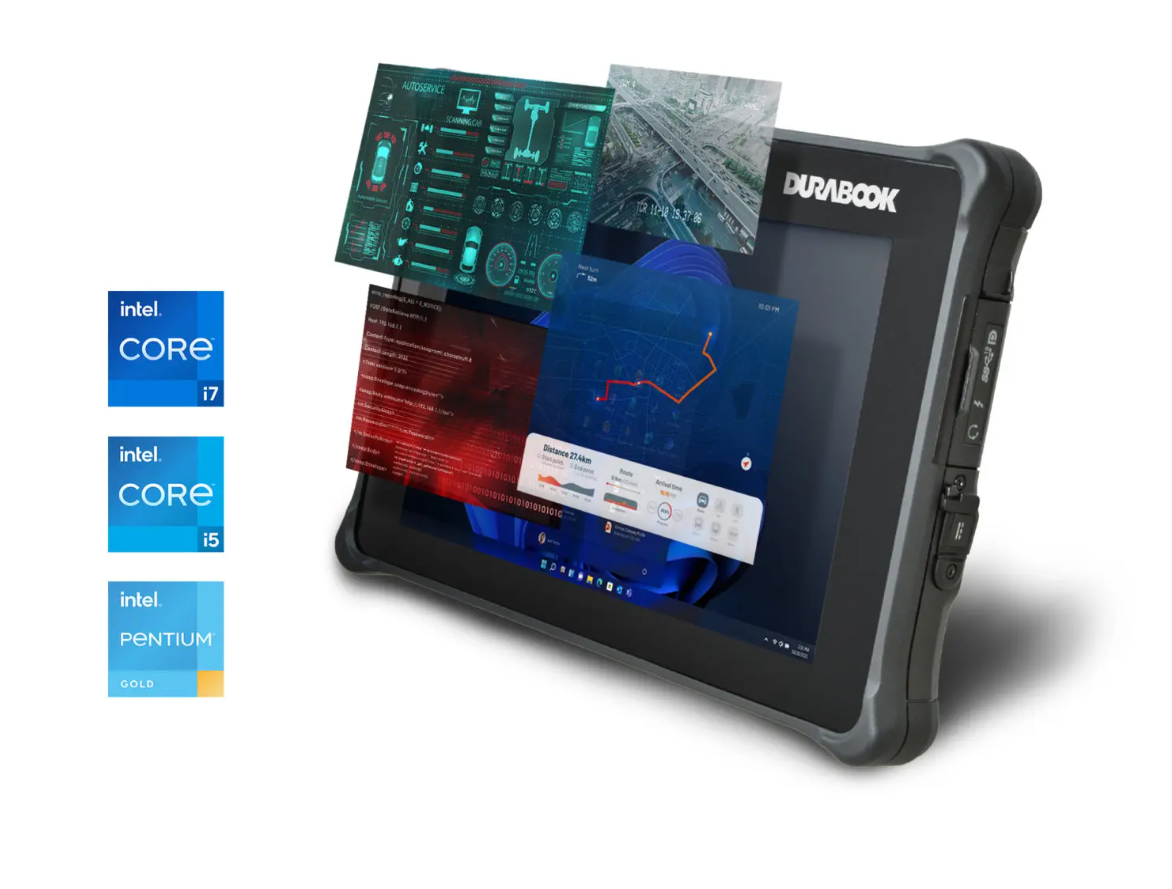

REVOLUTIONARY COMPUTING POWER

Equipped with Intel® Iris® Xe Graphics (Core i5/i7) for high performance without sacrificing battery life.

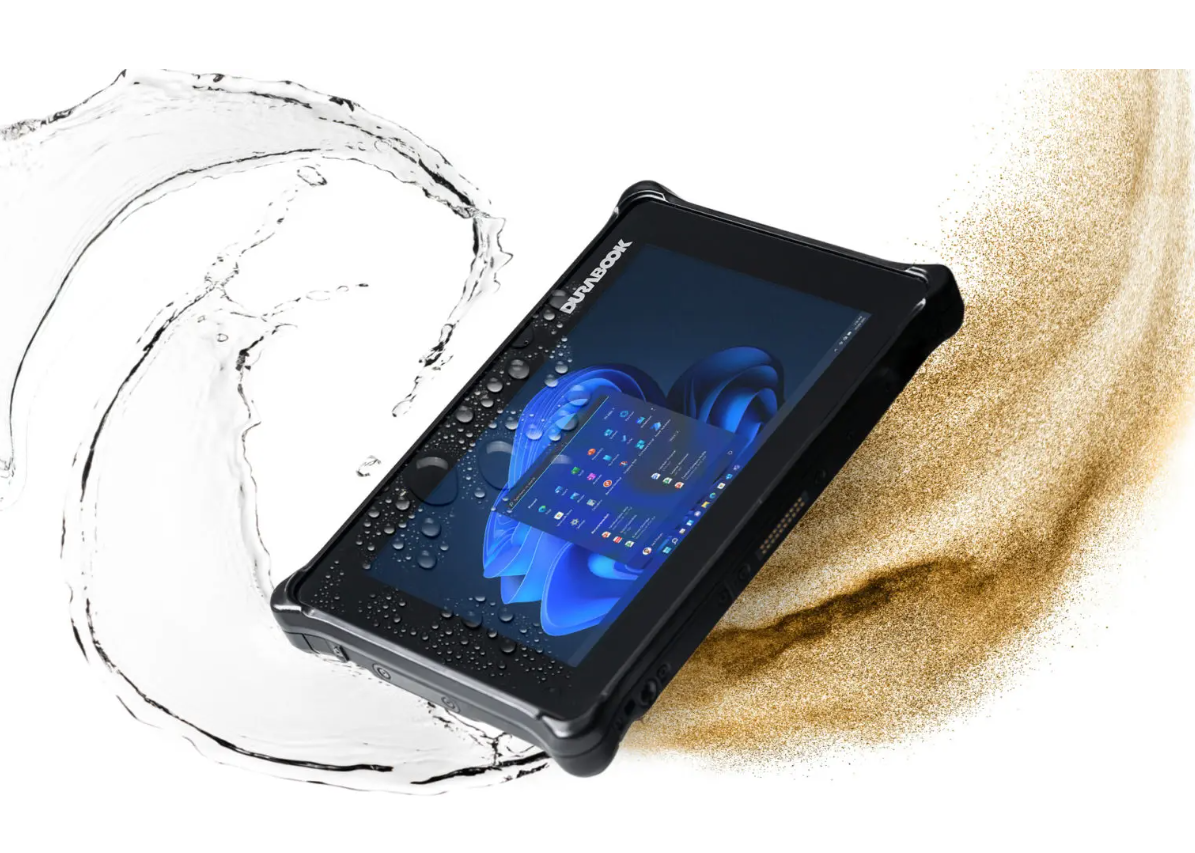

TOUGHNESS IN EVERY INCH

Certified with MIL-STD-810H and IP66 water and dust resistance, the R8 is built to withstand the harshest environments.

Can survive drops from 6 feet and extreme temperatures ranging from -20°C to 60°C.

DESIGNED FOR PROFESSIONALS

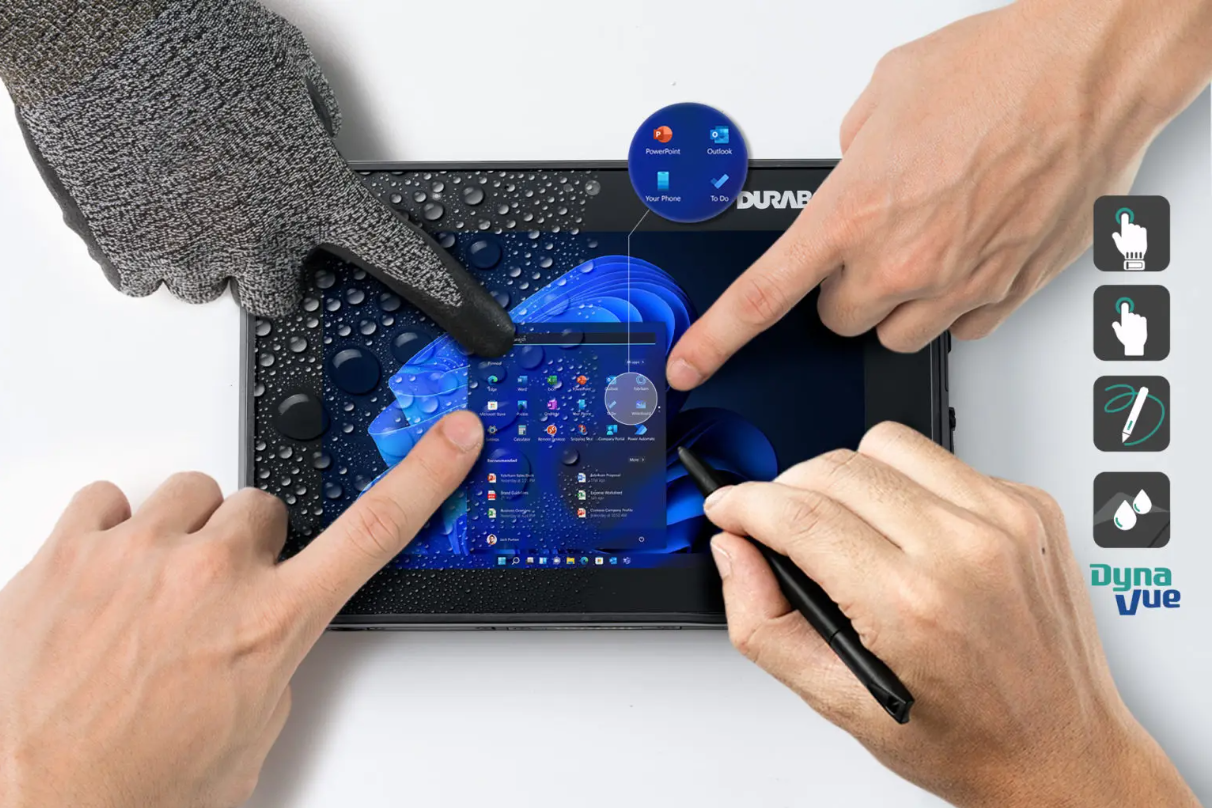

The 8.0” LCD (1280x800) display features DynaVue® technology with up to 800 nits brightness.

Capacitive multi-touch screen supports glove, stylus, water, and finger modes for seamless operation.

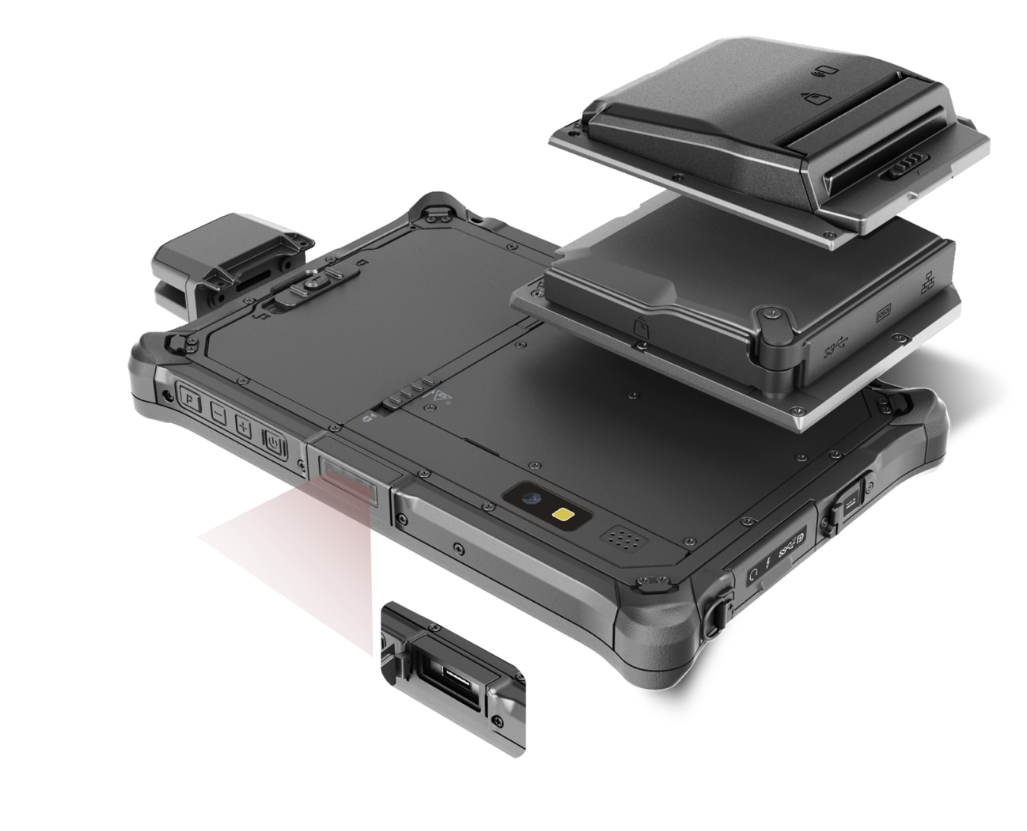

VERSATILE FUNCTIONALITY

The R8 delivers broad customization through its modular design, supporting various field scenarios with optional readers and expansion modules.

With Wi-Fi 6E, Bluetooth 5.3, optional GPS, 4G LTE, and camera options, it enables efficient data capture and communication on the move.

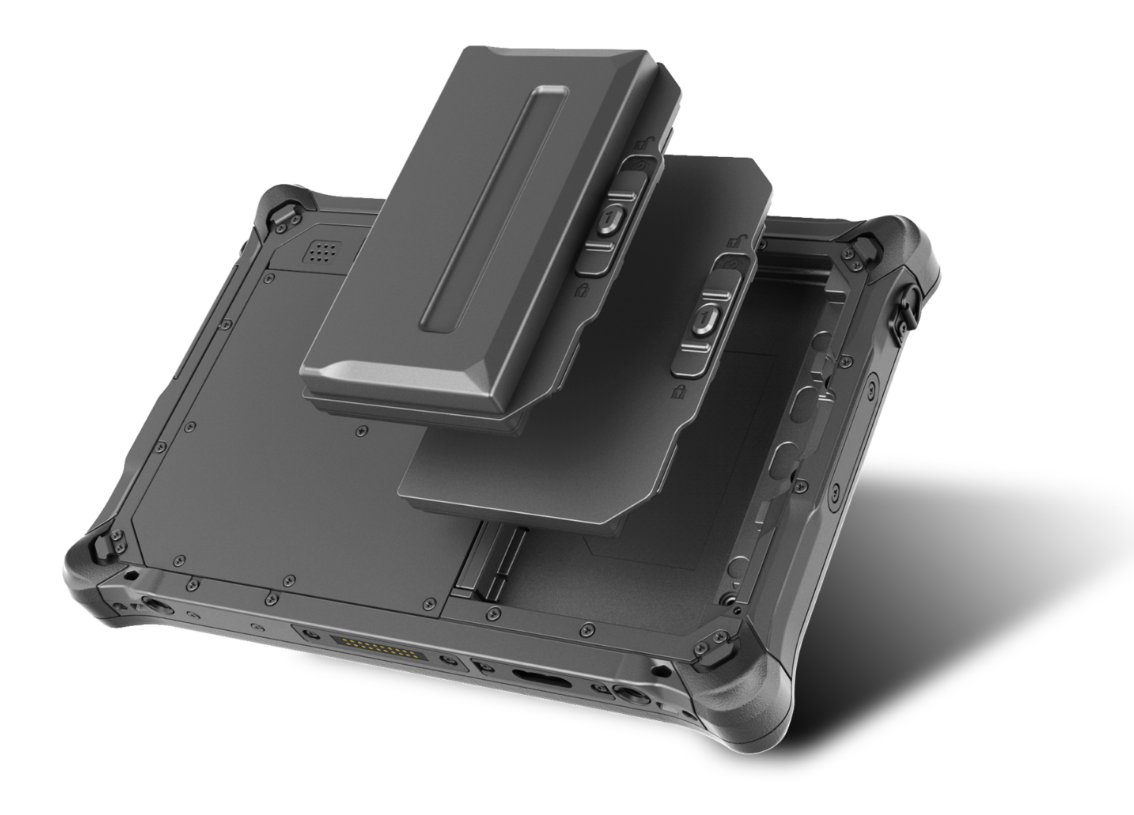

LONG LASTING POWER

The R8 runs up to 8.5 hours on its replaceable main battery, keeping field workers productive.

For extended use, a high-capacity battery offering up to 17 hours and hot-swappable options allow continuous operation across multiple shifts.

SPECIFICATIONS & ACCESSORIES

Download PDF

RUGGED SPECS

MIL-STD 810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, Explosive Atmosphere, Salt Fog)

MIL-STD 461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)
Sunlight readable display
6' drop 26 faces
IP 66 certified
Port covers
Magnesium alloy chassis
Optional swappable battery technology
Optional ANSI/UL 121201, Class I, Division 2

TECH SPECS

Display	8.0” LCD (1280 × 800) 800 nits DynaVue® sunlight readable display with capacitive multi-touch screen Optional with digitizer User selectable touch mode for Finger/Water, Glove or Stylus programmable function
Operating System	Windows® 11 Pro 64-bit
Processors	Intel® Core™ i7-1250U vPro™ (12MB Cache, up to 4.7 GHz, 2P+8E cores) Intel® Core™ i5-1230U vPro™ (12MB Cache, up to 4.4 GHz, 2P+8E cores) Intel® Pentium® Gold 8500 (8MB Cache, up to 4.4 GHz, 1P+4E cores)
Memory	Onboard 8GB up to 16GB (LPDDR4x)
Storage	128GB NVMe PCIe SSD Optional 256GB / 512GB / 1TB PCIe SSD
Graphics	Intel® UHD Graphics
Camera	Integrated 2.0 MP front-facing camera Optional 11.0 MP auto-focus rear camera with flash

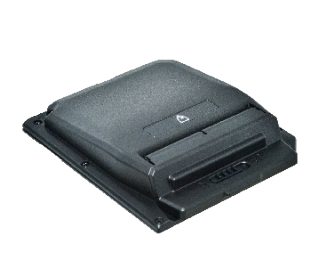

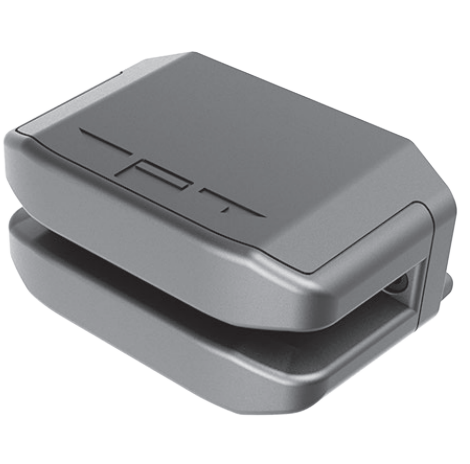

Expansion Options	Optional magnetic stripe reader Optional smart card reader with LF/HF-RFID (NFC) or UHF-RFID (NFC) or RS232/RJ45/USB 3.2 Gen1 (type A)

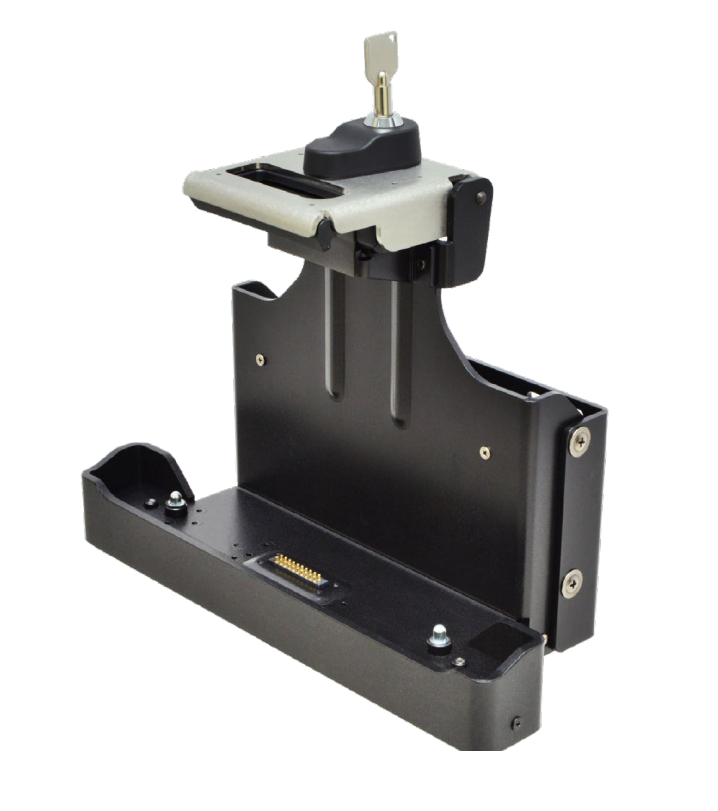

I/O Ports	Thunderbolt 4 x 1 USB 3.2 Gen2 (type C) x 1 (supports DP) Audio in/out (combo jack) x 1 microSD card (microSDXC) x 1 Docking connector (20-pin Pogo) x 1 Nano SIM card x 1 DC-In jack x 1 Optional USB 3.2 Gen1 (type A) x 1 Optional 10/100/1000 Ethernet (RJ45) x 1 Optional serial port (RS232) x 1 Optional 1D/2D barcode reader x 1 Optional RF antenna pass-through for GPS, WWAN and WLAN
Communications	Intel® Wi-Fi 6E AX211 (802.11 ax) Bluetooth® V5.3 Optional Dedicated GPS Optional 4G LTE and GPS multi-carrier mobile broadband Optional RF antenna pass-through for GPS, WWAN and WLAN

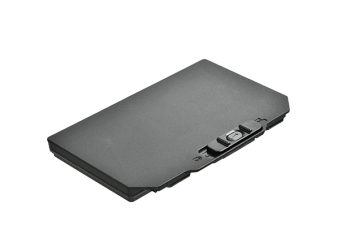

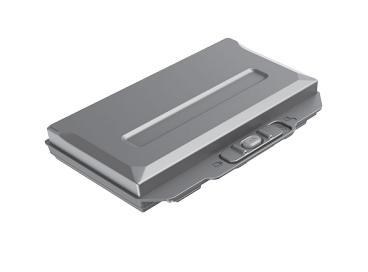

Power	AC adapter: 100-240V, 50Hz-60Hz, 65W Main battery Li-Ion, 7.6V, 3600mAh (8.5 hours) Optional long life battery Li-Ion 7.6V, 7200mAh, 17 hours Optional swappable battery : 5 minutes swap time
Environment	Operating: -20°C ~ 60°C / -4°F ~ 140°F Storage: -46°C ~ 71°C / -51°F ~ 160°F Humidity: 5% ~ 95%
Dimensions & Weight	227 mm (L) x 150 mm (W) x 20.5 mm (H) 0.86 kg (1.9 lbs)
