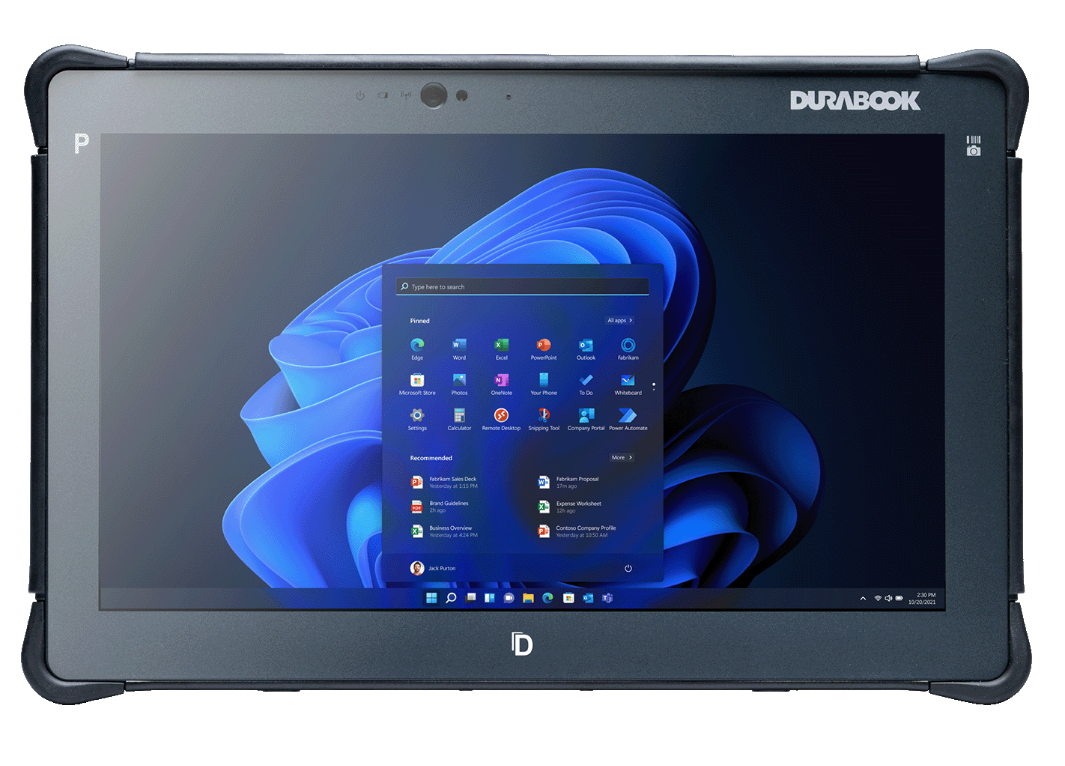

R11L Rugged Tablet

The R11L is built to meet the needs of the workers in professions ranging from retail and hospitality to warehousing and logistics.

At just 1.2kg (2.65lb) and 20mm thin, it offers a smart investment for businesses seeking enterprise-class performance.

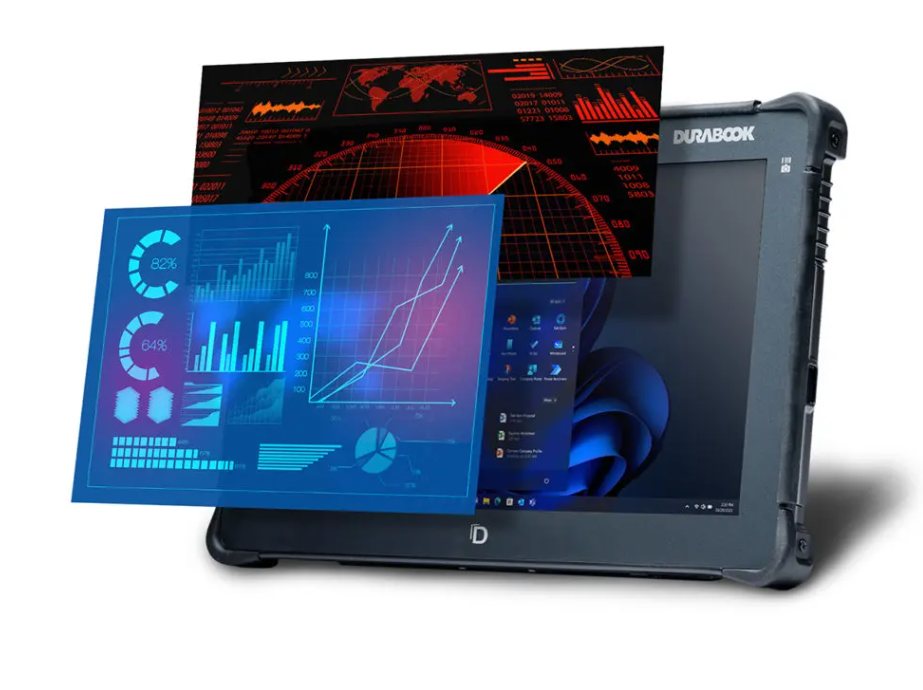

SMART INVESTMENT

The R11L delivers reliable performance for essential business applications while maximizing battery life and efficiency.

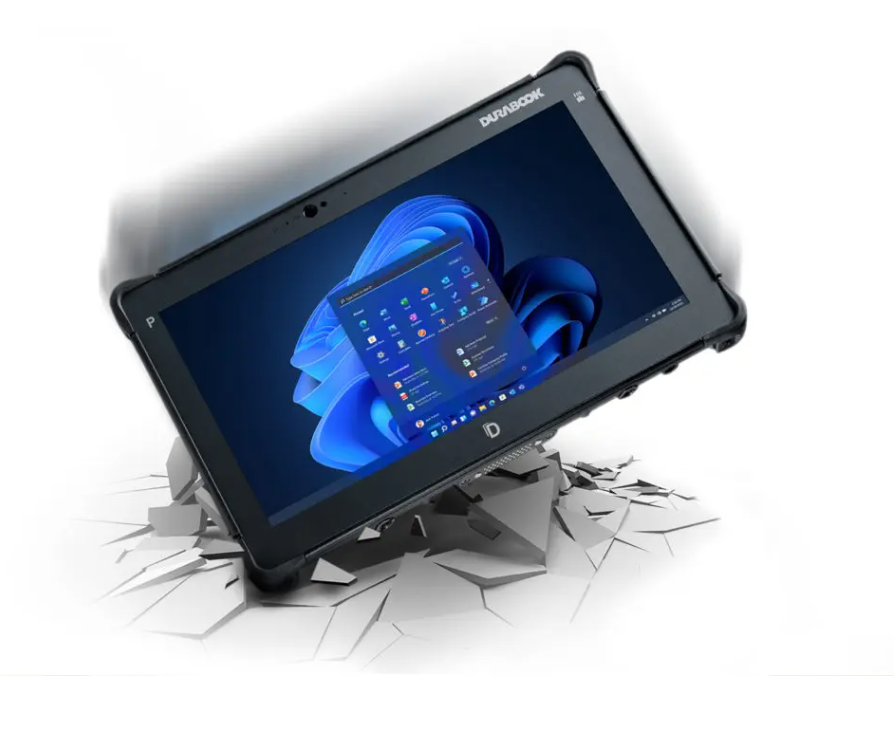

BUILT TOUGH

Certified with MIL-STD-810H and IP66 rating for resistance against dust, water, and vibration.

Withstands drops from 4 feet (1.2m), ensuring it can handle the accidental bumps and knocks of daily use.

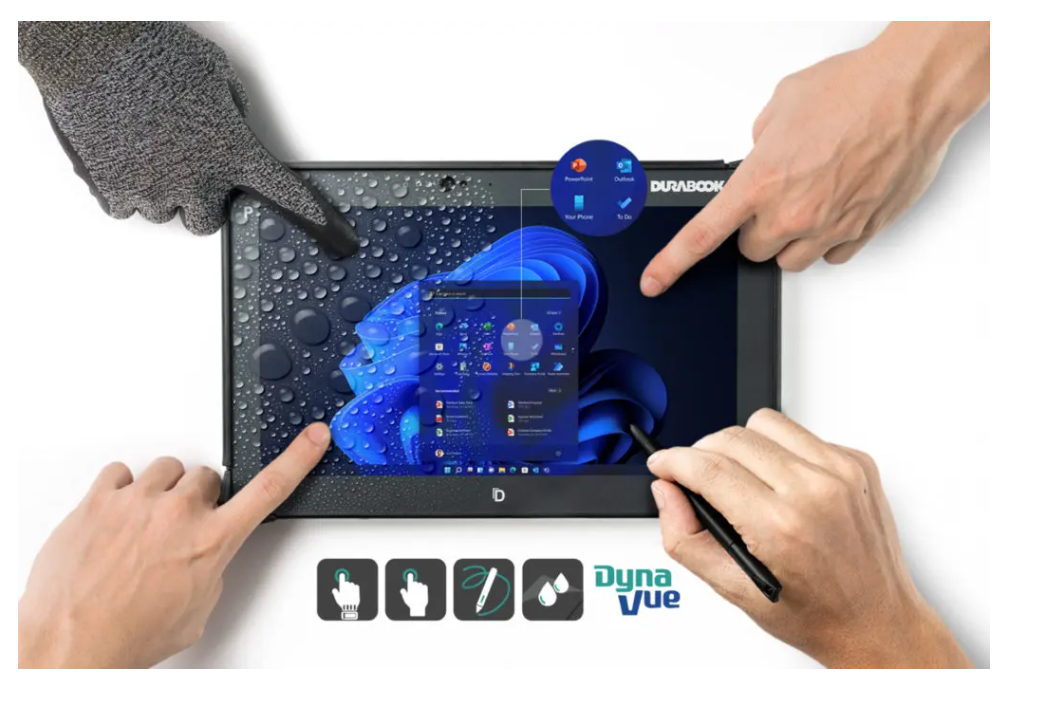

BRILLIANT TOUCHSCREEN

The 11.6” Full HD (1920 x 1080) display features DynaVue® technology for clear visibility indoors and outdoors.

10-point capacitive multi-touch screen with data auto-rejection supports glove, stylus, and wet finger modes.

LONG LASTING POWER

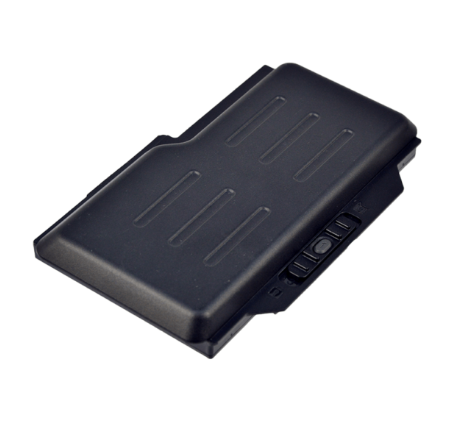

The R11L supports long field operations with an optional high-capacity battery that lasts up to 15 hours.

This extended power keeps professionals productive without frequent charging.

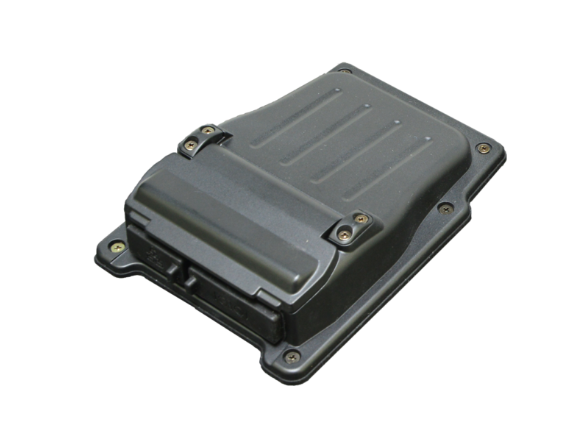

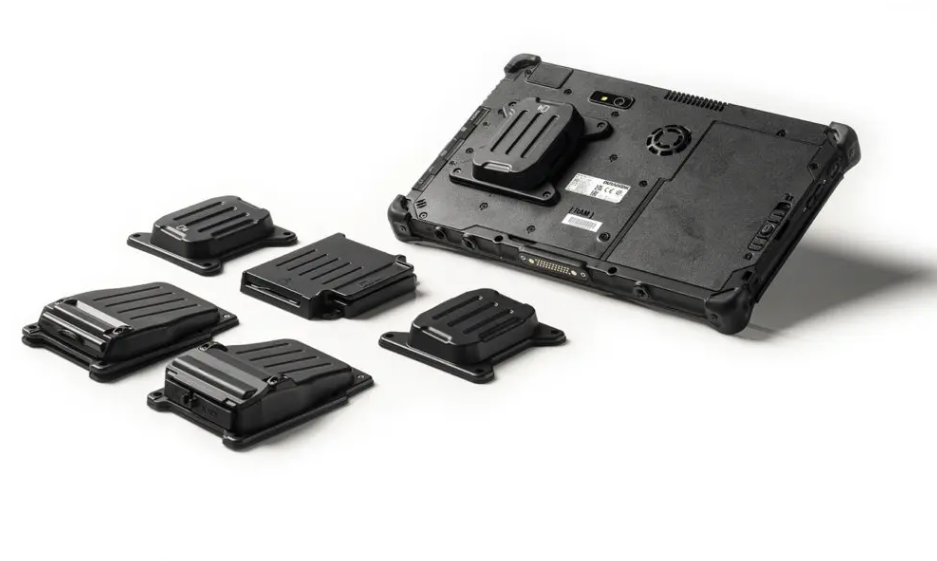

VERSATILE EXPANSION

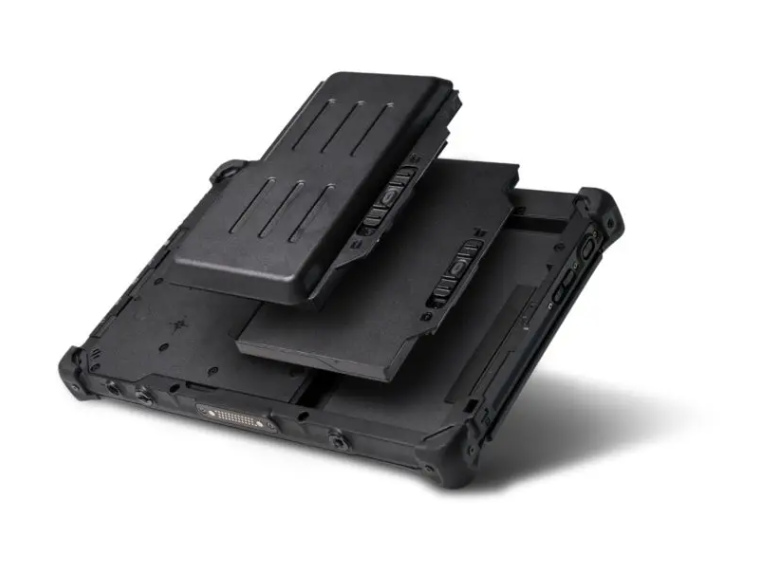

Customize the R11L for your workflow with optional modules: Barcode reader, RJ-45, or Smart Card Reader.

Optional RFID reader and additional connectivity modules ensure adaptability for various industries.

SPECIFICATIONS & ACCESSORIES

Download PDF

RUGGED SPECS

MIL-STD 810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity)

MIL-STD 461F certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)
Optional ANSI/UL 121201, Class I, Division 2
4' drop 26 faces
IP 66 certified
Magnesium alloy chassis
Port covers
Optional sunlight readable display

TECH SPECS

Display	11.6” FHD (1920 x 1080) 500 nits Optional 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen User selectable touch mode for Finger/Water, Glove, or Stylus programmable function
Operating System	Windows® 11 Pro 64-bit
Processors	Intel® Pentium® Gold 8505 (12MB Cache, up to 4.4 GHz, 1P+4E cores)
Memory	8GB (4800 MHz DDR5)
Storage	128GB NVMe PCIe SSD
Graphics	Intel® UHD Graphics
Camera	Integrated 2.0 MP front-facing camera Optional 11 MP auto-focus rear camera with flash
Expansion Options	Optional RJ-45 x 1 or LF/HF-RFID (NFC) or smart card reader or MSR+smart card reader or RJ-45/RS-232/smart card reader
I/O Ports	Thunderbolt 4 x 1 USB 3.2 Gen 2 (type A) x 1 Micro HDMI x 1 Audio in/out (combo jack) x 1 microSD card (microSDXC) x 1 Docking connector (35-pin Pogo) x 1 Nano SIM card x 1 DC-In jack x 1 Optional 10/100/1000 Ethernet (RJ-45) x 1 Optional smart card reader x 1 Optional 1D/2D barcode reader x 1 Optional RF antenna pass-through for GPS and WWAN
Communications	Intel® Wi-Fi 6E AX211 (802.11 ax) Bluetooth® V5.3 Optional Dedicated GPS module (UBLOX-NEO-M8N) Optional GPS and 4G LTE multi-carrier mobile broadband Optional RF antenna pass-through for GPS and WWAN

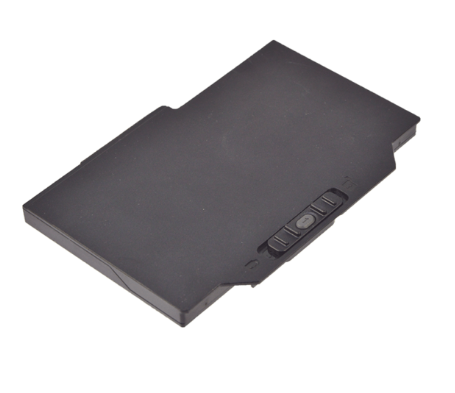

Power	AC adapter: 100-240V, 50Hz-60Hz, 65W Main battery Li-Ion, 11.1V, 3950mAh (8.5 hours) Optional long life battery Li-Ion 11.1V, 6900mAh (15 hours)
Environment	Operating: -20°C ~ 60°C / -4°F ~ 140°F Storage: -40°C ~ 71°C / -40°F ~ 160°F Humidity: 5% ~ 95%
Dimensions & Weight	299 mm (L) x 192 mm (W) x 20 mm (H) 1.2 kg
