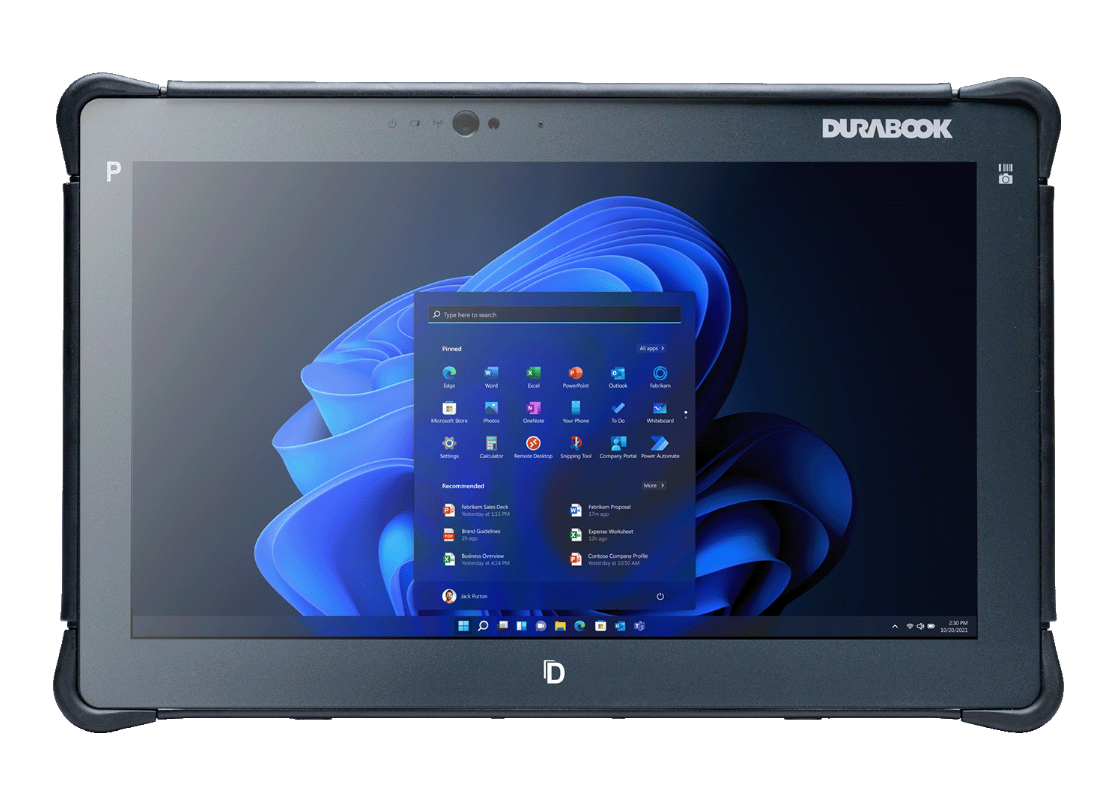

R11 Rugged Tablet

R11 Fully Rugged Tablet

The world’s most compact 11.6” fully rugged tablet, weighing only 1.2kg and measuring just 20mm thin.

The R11 redefines rugged mobility with a sleek design without compromising on durability or performance.

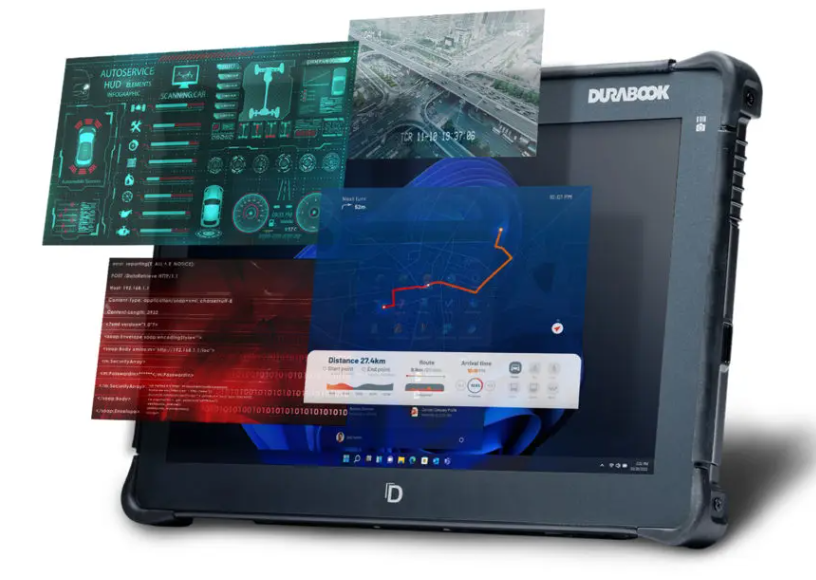

THRILLING PERFORMANCE

The R11 is built to streamline complex workflows and handle data-intensive applications effortlessly in the field.

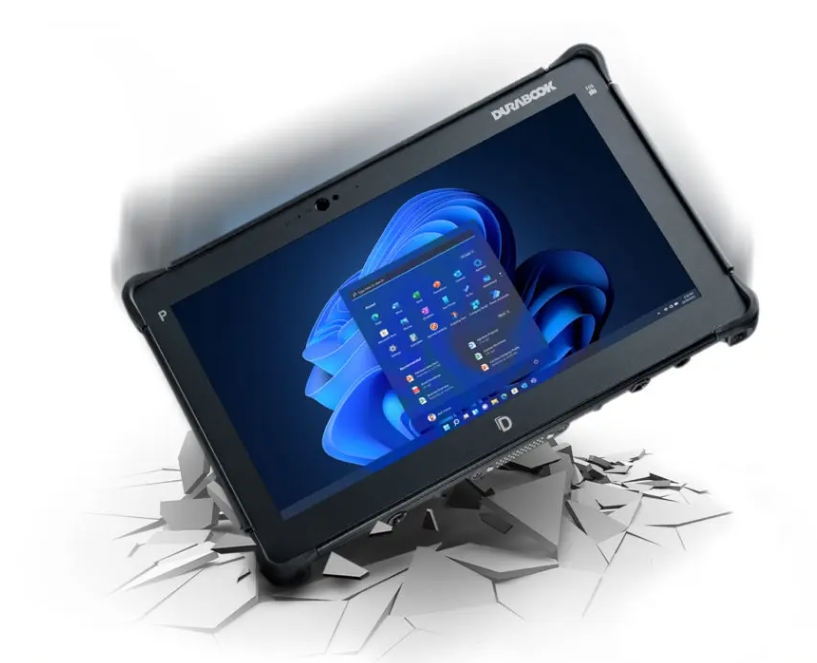

ROCK-SOLID DESIGN

Certified with MIL-STD-810H and IP66 rating, the R11 offers maximum protection against dust, water, and accidental drops.

Designed to withstand drops from 4 feet and extreme temperatures, ensuring reliability in the toughest environments.

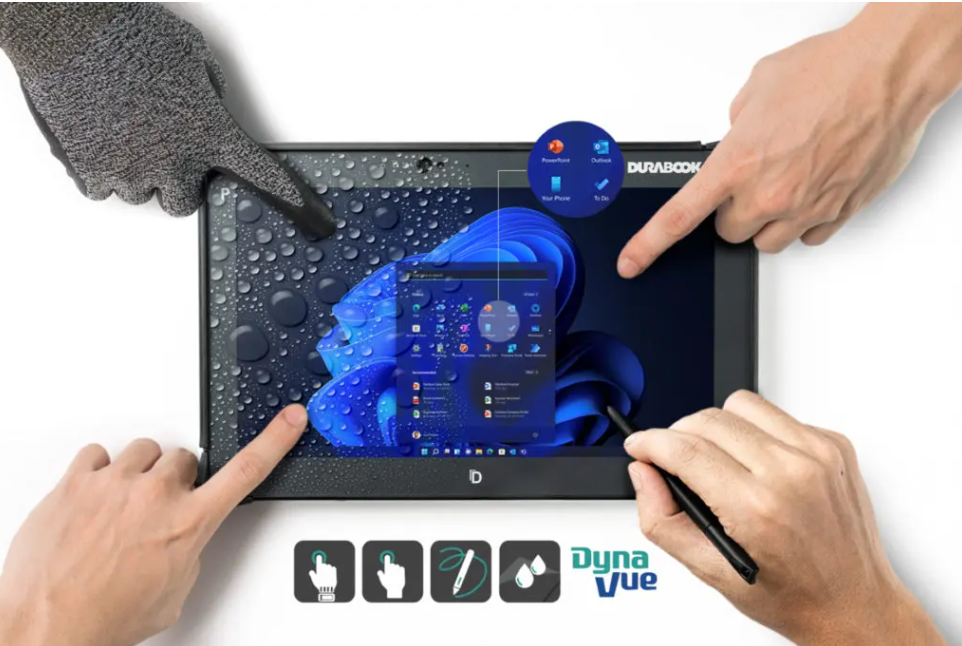

SHARP VISUALS

The R11 features a brilliant 11.6” Full HD (1920 x 1080) with DynaVue® technology up to 1,000 nits brightness.

Capacitive multi-touch screen supports glove, stylus, water, and finger modes for clear viewing in direct sunlight.

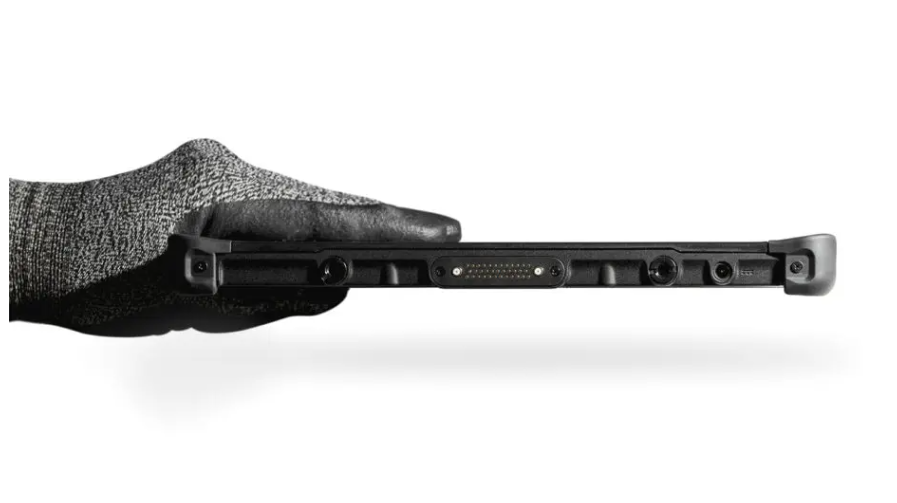

THIN, LIGHT AND STREAMLINED

The R11 is just 20mm thick and 1.2kg, making it the most compact fully-rugged tablet in its class.

Its sleek, streamlined design adds a modern look while maintaining full rugged durability.

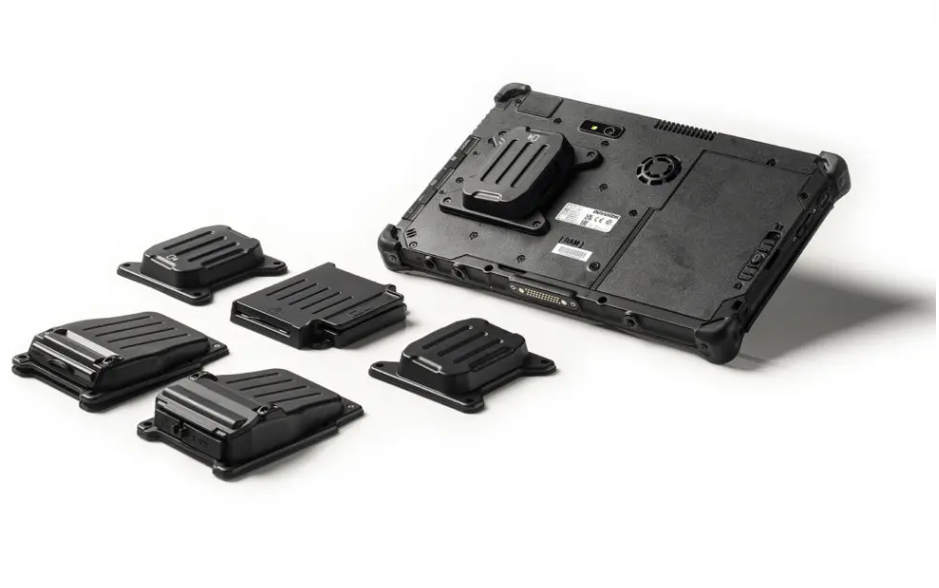

ENDLESS EXPANSION

The R11 offers versatile expansion options including barcode reader, RJ-45, RS-232, RFID, and smart card reader.

This flexibility allows customization for specific professional needs in field service, retail, and logistics.

SPECIFICATIONS & ACCESSORIES

Download PDF

RUGGED SPECS

MIL-STD 810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity)

MIL-STD 461F certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)
Optional ANSI/UL 121201, Class I, Division 2
4' drop 26 faces
IP 66 certified
Magnesium alloy chassis
Port covers
Optional sunlight readable display

TECH SPECS

Display	11.6” FHD (1920 x 1080) Optional 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen User selectable touch mode for Finger/Water, Glove, or Stylus
Operating System	Windows® 11 Pro 64-bit
Processors	Intel® Core™ i7-1255U vPro™ (12MB Cache, up to 4.7 GHz, 2P+8E cores) Intel® Core™ i5-1235U vPro™ (12MB Cache, up to 4.4 GHz, 2P+8E cores)
Memory	1 slot 8GB up to 32GB (4800MHz DDR5)
Storage	256GB NVMe PCIe SSD Optional 512GB / 1TB PCIe SSD
Graphics	Intel® UHD Graphics
Camera	Integrated 2.0 MP front-facing camera Optional 11.0 MP auto-focus rear camera with flash
Expansion Options	RJ-45 x 1 or LF/HF-RFID (NFC) or Smart Card Reader or MSR+Smart Card Reader or RJ-45/RS-232/Smart Card Reader2
I/O Ports	Thunderbolt 4 x 1 USB 3.2 Gen 2 (type A) x 1 Micro HDMI x 1 Audio in/out (combo jack) x 1 microSD card (microSDXC) x 1 Docking connector (35-pin Pogo) x 1 Nano SIM card x 1 DC-In jack x 1 Optional 10/100/1000 Ethernet (RJ45) x 1 Optional smart card reader x 1 Optional 1D/2D barcode reader x 1 Optional RF antenna pass-through for GPS and WWAN
Communications	Intel® Wi-Fi 6E AX211 (802.11 ax) Bluetooth® V5.3 Optional dedicated GPS module (UBLOX-NEO-M8N) Optional GPS and 4G LTE multi-carrier mobile broadband Optional RF antenna pass-through for GPS and WWAN
Power	AC adapter: 100-240V, 50Hz-60Hz, 65W Main battery Li-Ion, 11.1V, 3950mAh (8.5 hours) Optional Hi-Cap battery Li-Ion 11.1V, 6900mAh (15 hours)
Environment	Operating: -20°C ~ 60°C / -4°F ~ 140°F Storage: -40°C ~ 71°C / -40°F ~ 160°F Humidity: 5% ~ 95%
Dimensions & Weight	299 mm (L) x 192 mm (W) x 20 mm (H) 1.2 kg (2.65 lbs)
