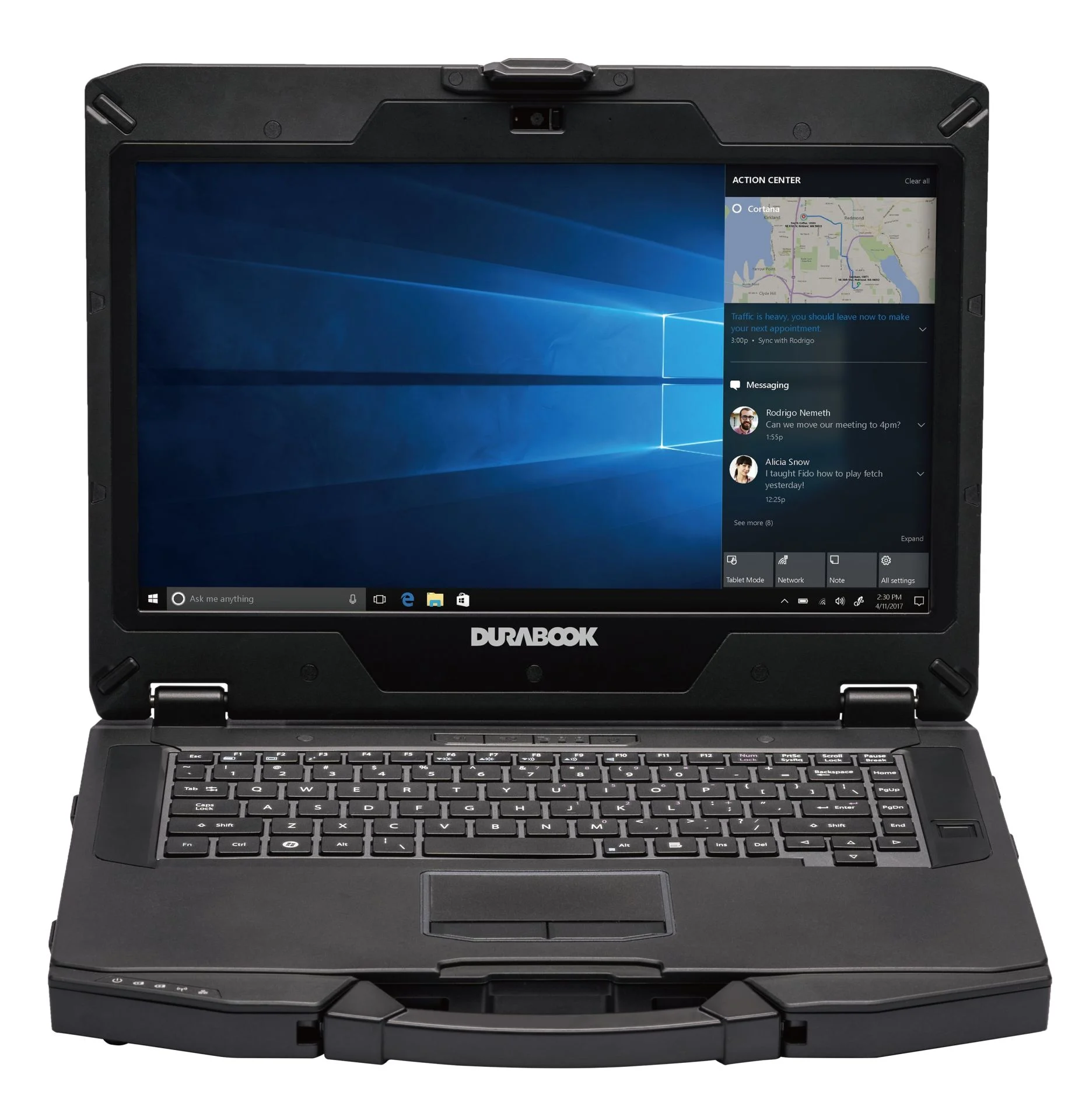

S14I Rugged Laptop

S14I Semi-Rugged Laptop

The S14I features 13th Generation Intel® Core™ CPUs and a class-leading 4’ drop spec, pushing the boundaries of semi-rugged design.

It bridges the gap between commercial and rugged devices, offering durability without compromising on performance or design.

ONE STEP AHEAD

Powered by the latest 13th Gen Intel® Core™ processors and Intel® Iris® Xe Graphics, the S14I handles data-intensive tasks with ease.

Up to 64GB DDR5 RAM and NVMe SSD options ensure ultra-fast data processing for field professionals.

EXCEPTIONALLY TOUGH

Engineered for harsh conditions, the S14I withstands drops from 4 feet (1.2m) and holds an IP53 rating for water and dust resistance.

MIL-STD-810H certified to operate in extreme temperatures, vibrations, and shock environments.

VIEW EVERY DETAIL

The S14I features a 14” Full HD (1920 x 1080) display with DynaVue® technology for up to 1,200 nits brightness.

Includes 10-point capacitive multi-touch with four modes (glove, stylus, water, finger) for clear viewing in direct sunlight.

MAXIMUM CONNECTIVITY

Equipped with a full range of ports including HDMI, VGA, RS-232, RJ-45, and two USB 3.2 Gen 2 Type-A ports.

Supports Thunderbolt™ 4 for high-speed data transfer and modern connectivity needs in the field.

ULTIMATE VERSATILITY

The S14I includes a versatile media bay that can accommodate a second battery, a second SSD storage, or a DVD drive.

This modular design allows users to adapt the device to specific workflow requirements instantly.

SPECIFICATIONS & ACCESSORIES

Download PDF

RUGGED SPECS

MIL-STD 810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity)

4' (1.2m) Drop (26 faces)
IP 53 certified
Magnesium alloy chassis

Port covers
Removable quick-release battery and storage drive
Optional sunlight readable display
Optional dual hot-swappable battery technology

TECH SPECS

Display	14.0” FHD (1920 x1080) User selectable touch mode for Finger/Water, Glove or Stylus programmable function Optional 1200 nits DynaVue® sunlight readable display without touch screen Optional 1200 nits DynaVue® sunlight readable display with capacitive multi-touch screen
Operating System	Windows® 11 Pro 64-bit
Processors	Intel® Core™ Ultra 5 125U (12MB Cache, up to 4.3 GHz, 12 cores, 14 threads with Intel® AI BOOST NPU) Intel® Core™ Ultra 5 135U (12MB Cache, up to 4.4 GHz, 12 cores, 14 threads with Intel® AI BOOST NPU) Intel® Core™ Ultra 7 155U (12MB Cache, up to 4.8 GHz, 12 cores, 14 threads with Intel® AI BOOST NPU) Intel® Core™ Ultra 7 165U (12MB Cache, up to 4.9 GHz, 12 cores, 14 threads with Intel® AI BOOST NPU)
Memory	2 slots 16GB up to 64GB (5600MHz DDR5)
Storage	256GB NVME PCIE SSD (Optional 512GB/1TB/2TB) Optional OPAL 2.0 SSD Optional 2nd storage NVME PCIE SSD
Graphics	Intel® Graphics / Intel® Arc™ Graphics Optional 512GB/1TB/2TB PCIE SSD Optional OPAL 2.0 SSD Optional 2nd storage NVME PCIE SSD
Camera	Integrated 2.0 MP web-cam with shutter design Optional 5.0 MP IR camera for Windows Hello
Expansion Bay (One Option Only)	Optional smart card reader Optional ExpressCard 54 Optional 2nd serial port (RS232) & USB 3.2 Gen 1 (type A) Optional 1D/2D barcode reader
I/O Ports	Thunderbolt 4 (type C) x 2 USB 3.2 Gen 2 (type A) x 1 USB 3.2 Gen 1 (type A) x 1 or 2 Audio in/out (combo jack) x 1 microSD card (microSDXC) x 1 10/100/1000 Ethernet (RJ45) x 2 HDMI 2.1 port (type A) x 1 Serial port (RS232/RS422/RS485 : D-sub, 9-pin) x 1 or 2 Dual SIM (Nano SIM & eSIM) DC-In jack x 1 Optional smart card reader x 1 Optional ExpressCard 54 x 1 Optional docking connector (41-pin Pogo) x 1 Optional RF antenna pass-through for GPS, WWAN, and WLAN
Communications	Integrated 10/100/1000 Ethernet Intel® Wi-Fi 7 BE200 (802.11 be) Bluetooth® V5.4 Optional dedicated GPS module (UBLOX-NEO-M9N) Optional 4G LTE multi-carrier mobile broadband Optional 5G Optional RF antenna pass-through for GPS, WWAN and WLAN
Power	AC adapter : 100-240V, 50Hz-60Hz, 90W Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA Main battery Li-Ion, 10.8V, 6900mAh, 16 hours Optional 2nd battery Li-Ion 10.8V, 6900mAh, 16 hours with dual hot-swappable battery technology
Environment	Temperature Operating : - 29°C ~ 63°C / - 20°F ~ 145°F Storage : - 51°C ~ 71°C / - 60°F ~ 160°F Humidity : 5% ~ 95%
Dimensions & Weight	350 mm (L) x 282 mm (W) x 38 mm (H) 2.3 kg (5.07 lbs)
