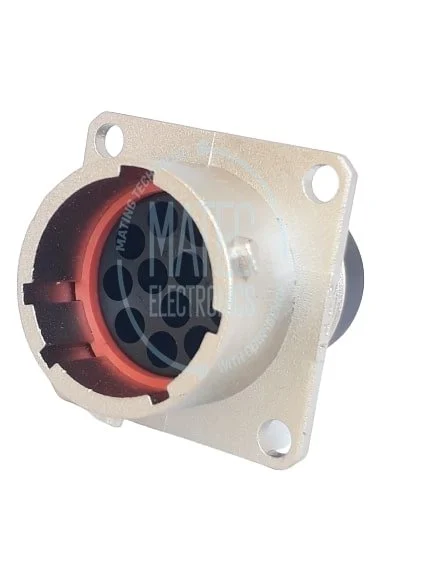

RT001412PNH
Amphenol RT series connectors are industrial multi-way connectors available in various insert arrangements with a variety of wire gauge options. The RT Series was designed to provide high performance for harsh environment applications and especially when IP protections are needed. The connector series offers IP67, IP69 and IP69K protections.
0.00 ₺
0.00 ₺
Brand :
AMPHENOL
Stock Code :
RT001412PNH
Stock Amount :
97
pcs
| Brand | AMPHENOL |
| Connector Series | RT Series |
| RoHS | YES |
| Connector Shell Style | Receptacle |
| Connector Mounting Type | Square Flange |
| Connector Mating Style | Push-Pull |
| Shell Material | Zinc Alloy |
| Shell Plating | Nickel |
| Shell Size and Insert Arrangement | 14-12 |
| Number of Contacts and Contact Size | 14 X 16 AWG |
| Contact Termination Type | Crimp |
| Contact Gender | Pin |
| Operating Temperature | -40°C // +105°C |
| Keying Rotation | N |
| Mating Cycle | 500 |
| IP Class | IP67 |
| Weight | - |
