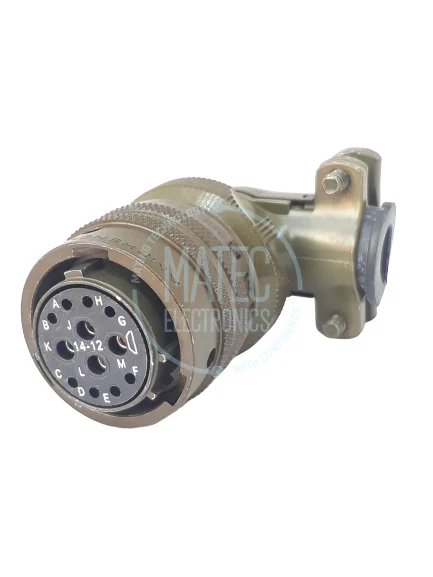

PT08E14-12S-SR
Amphenol® Miniature PT Series connectors offer twice the number of contacts in just half the size of a standard connector, providing high density contact arrangements. Meeting and exceeding MIL-DTL-26482 Series I, these cylindrical connectors are available in countless options for different selection requirements such as Solder, Crimp and PC-Tail options by providing maximum design flexibility. PT series is being used in many different harshest environment Military and Industrial applications.
0.00 ₺
0.00 ₺
Brand :
AMPHENOL
Stock Code :
PT08E1412SSR
Stock Amount :
1
pcs
| Brand | AMPHENOL |
| Connector Series | MIL-DTL-26482 Series I |
| RoHS | YES |
| Connector Shell Style | Right Angle Plug |
| Connector Mounting Type | Cable Mount |
| Connector Mating Style | Bayonet |
| Shell Material | Aluminum |
| Shell Plating | Olive Drab Cadmium |
| Shell Size and Insert Arrangement | 14-12 |
| Number of Contacts and Contact Size | 8 X 20 AWG + 4 X 16 AWG |
| Contact Termination Type | Solder |
| Contact Gender | Socket |
| Operating Temperature | -55°C // +125°C |
| Keying Rotation | N |
| Mating Cycle | 500 |
| IP Class | IP67 |
| Weight | - |
