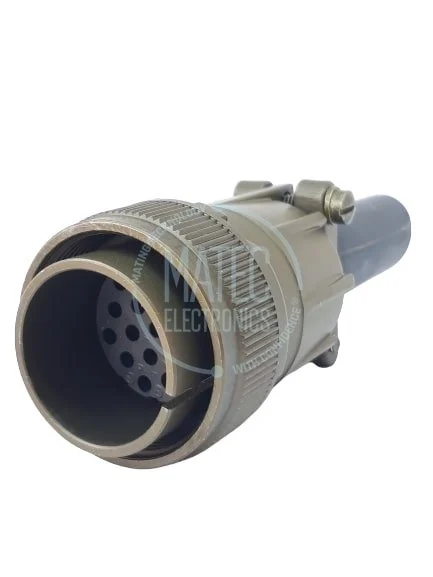

MS4106F22-14P-B
MIL-C-5015 series connectors offer threaded coupled connectors with solder or crimp contacts, for general duty and harshest environment applications. Available in a variety of styles and classes, these connectors are primarily used in a range of military and industrial applications where specific degrees of environmental and EMI protections are required.
0.00 ₺
0.00 ₺
Brand :
QPL
Stock Code :
MS4106F2214PB
Stock Amount :
15
pcs
| Brand | QPL |
| Connector Series | MIL-DTL-5015 |
| RoHS | NO |
| Connector Shell Style | Straight Plug |
| Connector Mounting Type | Cable Mount |
| Connector Mating Style | Threaded |
| Shell Material | Aluminum |
| Shell Plating | Olive Drab Cadmium |
| Shell Size and Insert Arrangement | 22-14 |
| Number of Contacts and Contact Size | 19 X 16 AWG |
| Contact Termination Type | Crimp |
| Contact Gender | Pin |
| Operating Temperature | -55°C // +125°C |
| Keying Rotation | N |
| Mating Cycle | 500 |
