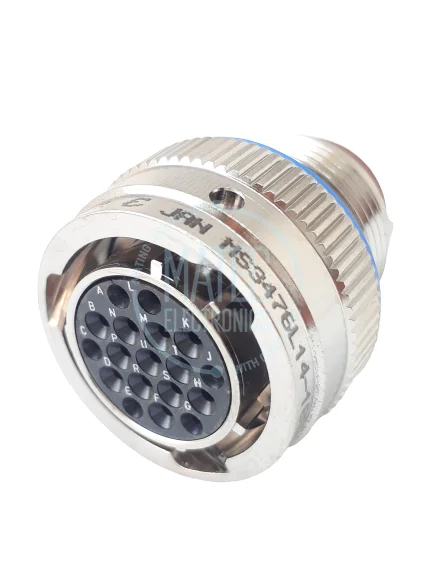

MS3476L14-18SZ
MIL-DTL-26482 Series 2 connectors offer bayonet coupled, rugged rear insertable and releasable crimp contact technology with high density contact arrangements. These connectors provide almost twice the number of contacts in just half the size of a standard connector. Meeting and exceeding MIL-DTL-26482 Series 2, these cylindrical connectors are used to overcome harshest environment application requirements with environmental resistance and EMI shielding features.
0.00 ₺
0.00 ₺
Brand :
QPL
Stock Code :
MS3476L1418SZ
Stock Amount :
45
pcs
| Brand | QPL |
| Connector Series | MIL-DTL-26482 Series II |
| RoHS | YES |
| Connector Shell Style | Straight Plug |
| Connector Mounting Type | Cable Mount |
| Connector Mating Style | Bayonet |
| Shell Material | Aluminum |
| Shell Plating | Olive Drab Cadmium |
| Shell Size and Insert Arrangement | 14-18 |
| Number of Contacts and Contact Size | 18 X 20 AWG |
| Contact Termination Type | Crimp |
| Contact Gender | Socket |
| Operating Temperature | -65°C // +200°C |
| Keying Rotation | Z |
| Mating Cycle | 500 |
| IP Class | IP67 |
| Weight | - |
