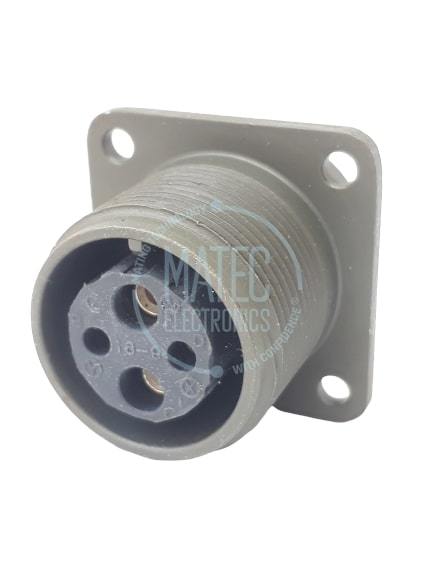

MS3102A16-9S
MIL-C-5015 series connectors offer threaded coupled connectors with solder or crimp contacts, for general duty and harshest environment applications. Available in a variety of styles and classes, these connectors are primarily used in a range of military and industrial applications where specific degrees of environmental and EMI protections are required.
0.00 ₺
0.00 ₺
Brand :
QPL
Stock Code :
MS3102A169S
Stock Amount :
3
pcs
| Brand | QPL |
| Connector Series | MIL-DTL-5015 |
| RoHS | NO |
| Connector Shell Style | Receptacle |
| Connector Mounting Type | Square Flange |
| Connector Mating Style | Threaded |
| Shell Material | Aluminum |
| Shell Plating | Olive Drab Cadmium |
| Shell Size and Insert Arrangement | 16-9 |
| Number of Contacts and Contact Size | 2 X 12 AWG + 2 X 16 AWG |
| Contact Termination Type | Solder |
| Contact Gender | Socket |
| Operating Temperature | -55°C // +125°C |
| Keying Rotation | N |
| Mating Cycle | 500 |
| IP Class | - |
| Weight | - |
