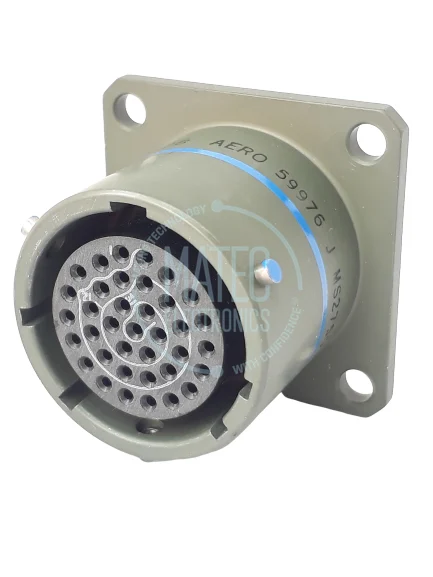

MS27505T15B35S
MIL-DTL-38999 Series I Connectors were developed to meet the need of the aerospace industry. Meeting or exceeding MIL-DTL-38999 Series I requirements, the Connectors provide environmental resistance and EMI performance with quick positive coupling and %100 scoop-proofness. These Connectors meet or exceed the Mil-Spec requirements and are available in aluminum, stainless steel or hermeticity options.
0.00 ₺
0.00 ₺
Brand :
QPL
Stock Code :
MS27505T15B35S
Stock Amount :
1
pcs
| Brand | QPL |
| Connector Series | MIL-DTL-38999 Series I |
| RoHS | NO |
| Connector Shell Style | Receptacle |
| Connector Mounting Type | Box Mount |
| Connector Mating Style | Bayonet |
| Shell Material | Aluminum |
| Shell Plating | Olive Drab Cadmium |
| Shell Size and Insert Arrangement | D(15)-35 |
| Number of Contacts and Contact Size | 37 X 22D AWG |
| Contact Termination Type | Crimp |
| Contact Gender | Socket |
| Operating Temperature | -65°C // +175°C |
| Keying Rotation | N |
| Mating Cycle | 500 |
