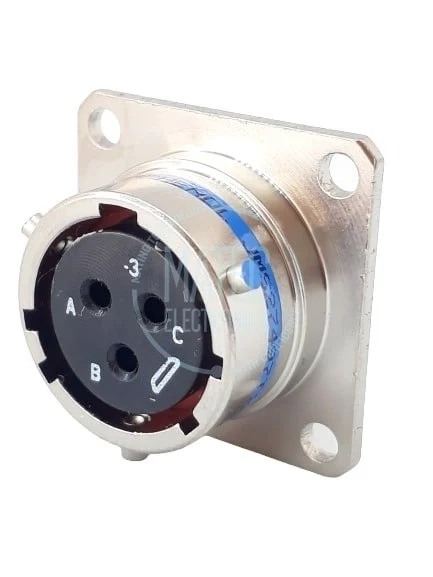

MS27497T12F3S
MIL-DTL-38999 Series II Connectors were developed to meet the need of the aerospace industry. Meeting or exceeding MIL-DTL-38999 Series II requirements, the Connectors provide environmental resistance and EMI performance with quick positive coupling and low profile design. In addition to these increased performance capabilities, MIL-DTL-38999 Series II Connectors provide space saving and weight loss. These Connectors meet or exceed the Mil-Spec requirements and are available in aluminum, stainle
0.00 ₺
0.00 ₺
Brand :
QPL
Stock Code :
MS27497T12F3S
Stock Amount :
30
pcs
| Brand | QPL |
| Connector Series | MIL-DTL-38999 Series II |
| Connector Shell Style | Receptacle |
| Connector Mounting Type | Rear Mount |
| Connector Mating Style | Bayonet |
| Shell Material | Aluminum |
| Shell Plating | Electroless Nickel Plating |
| Shell Size and Insert Arrangement | 12-3 |
| Number of Contacts and Contact Size | 3 X 16 AWG |
| Contact Termination Type | Crimp |
| Contact Gender | Socket |
| Operating Temperature | -65°C // +175°C |
| Mating Cycle | 500 |
| IP Class | IP67 |
