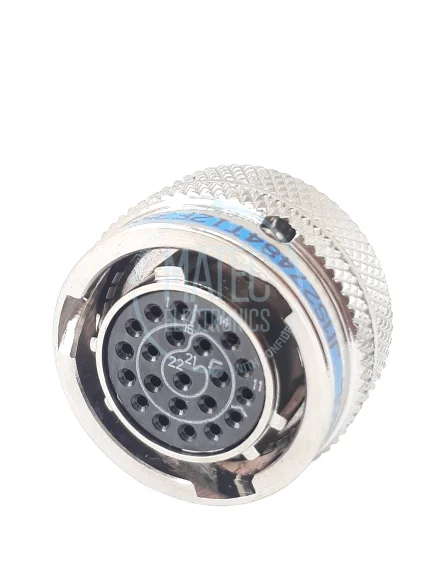

MS27484T12F35SD
MIL-DTL-38999 Series II Connectors were developed to meet the need of the aerospace industry. Meeting or exceeding MIL-DTL-38999 Series II requirements, the Connectors provide environmental resistance and EMI performance with quick positive coupling and low profile design. In addition to these increased performance capabilities, MIL-DTL-38999 Series II Connectors provide space saving and weight loss. These Connectors meet or exceed the Mil-Spec requirements and are available in aluminum, stainle
0.00 ₺
0.00 ₺
Brand :
QPL
Stock Code :
MS27484T12F35SD
Stock Amount :
30
pcs
| Brand | QPL |
| Connector Series | MIL-DTL-38999 Series II |
| RoHS | NO |
| Connector Shell Style | Straight Plug |
| Connector Mounting Type | Cable Mount |
| Connector Mating Style | Bayonet |
| Shell Material | Aluminum |
| Shell Plating | Electroless Nickel Plating |
| Shell Size and Insert Arrangement | 12-35 |
| Number of Contacts and Contact Size | 22 X 22D AWG |
| Contact Termination Type | Crimp |
| Contact Gender | Socket |
| Operating Temperature | -65°C // +175°C |
| Keying Rotation | D |
| Mating Cycle | 500 |
| IP Class | IP67 |
