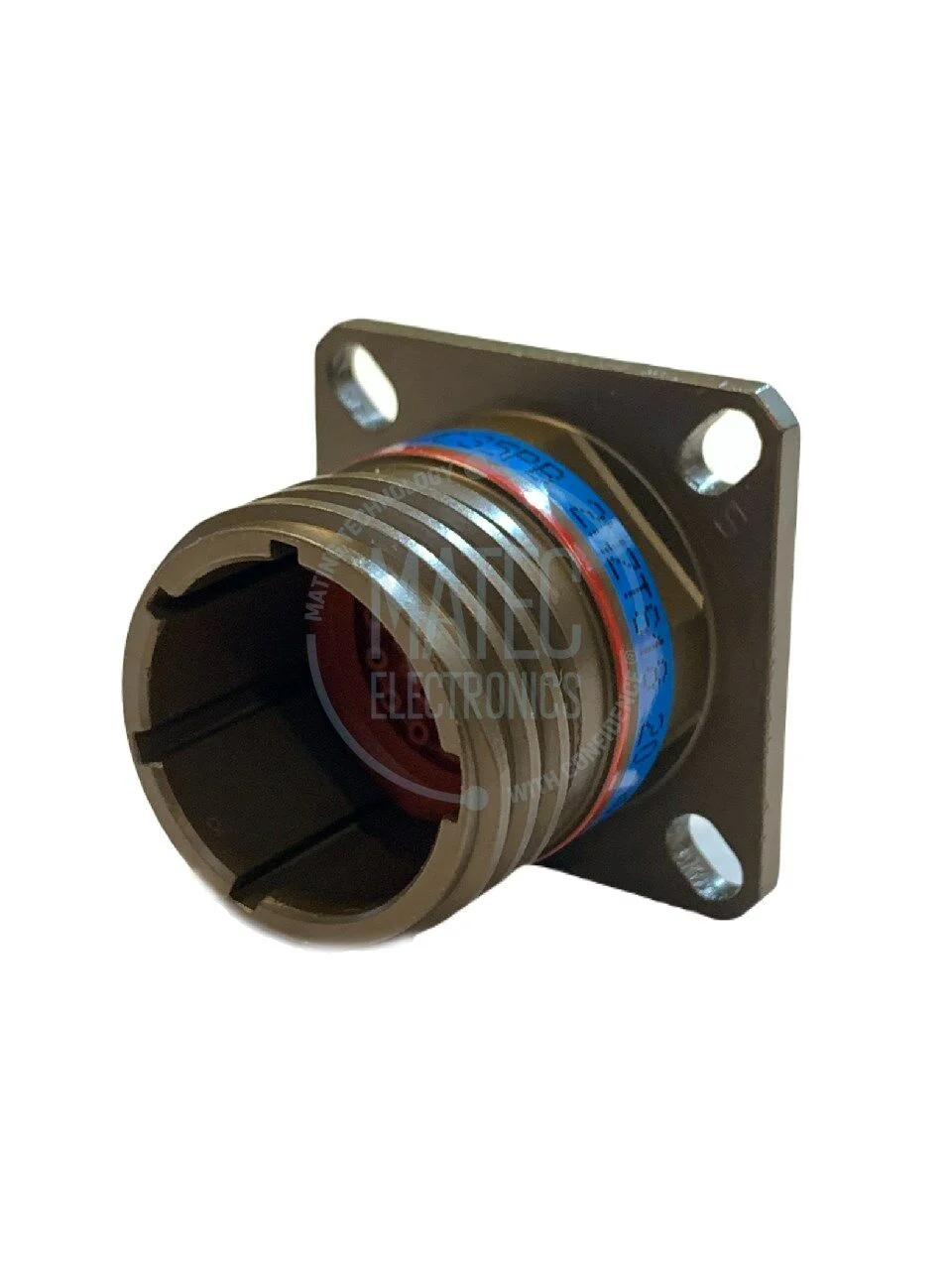

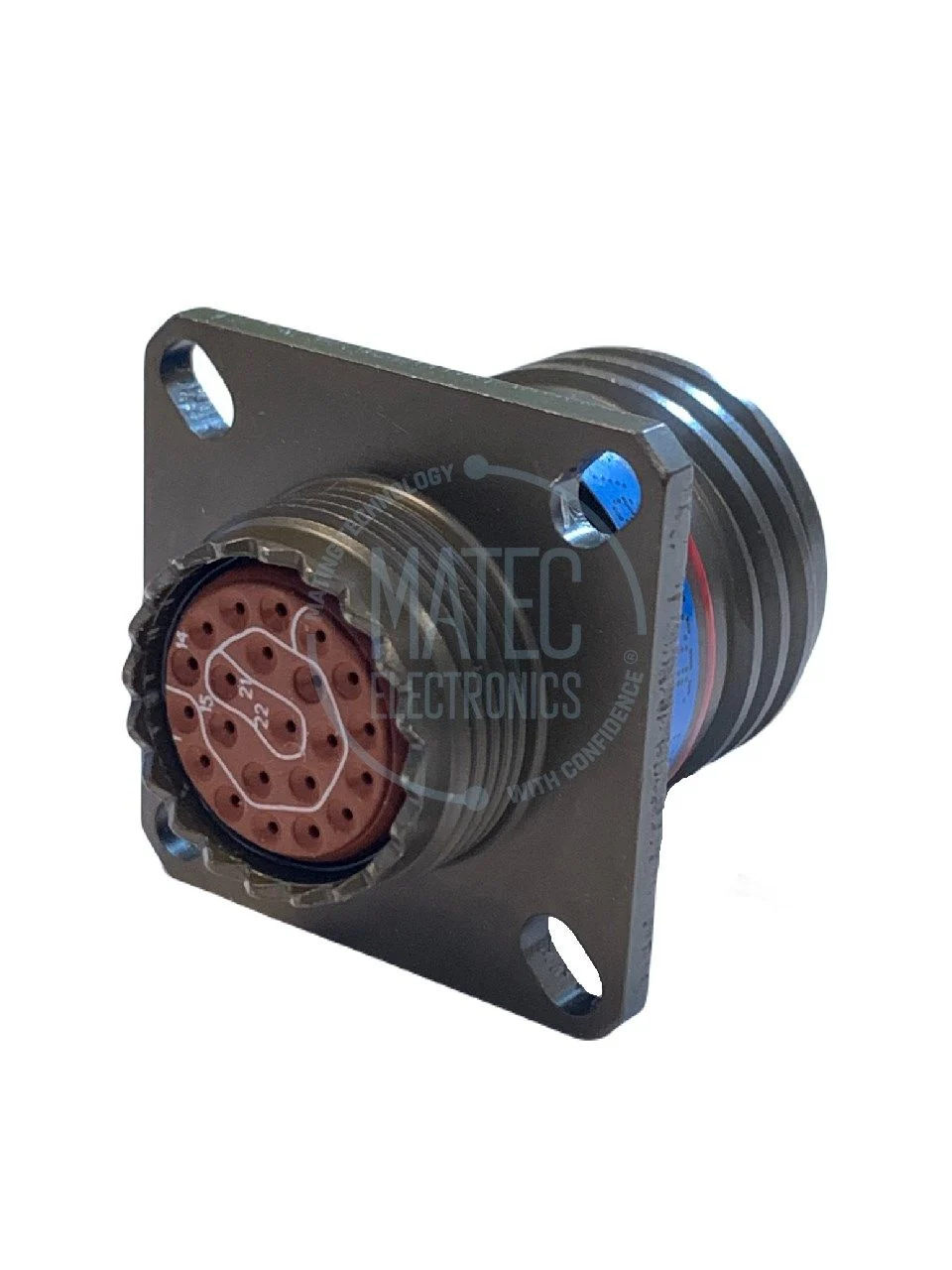

D38999/20WC35PB
MIL-DTL-38999 Series III connectors offer highest performance for general duty and harshest environment applications for both Military and Industrial programs. Meeting or exceeding MIL-DTL-38999 Series III requirements, the connectors provides better environmental resistance and EMI performance with countless options. In addition to these increased performance capabilities, QPL 38999 connectors also provide rugged vibration/shock and quick coupling features with hermeticity options.
0.00 ₺
0.00 ₺
Brand :
QPL
Stock Code :
D3899920WC35PB
Stock Amount :
4
pcs
| Brand | QPL |
| Connector Series | MIL-DTL-38999 Series III |
| RoHS | NO |
| Connector Shell Style | Receptacle |
| Connector Mounting Type | Square Flange |
| Connector Mating Style | Threaded |
| Shell Material | Aluminum |
| Shell Plating | Olive Drab Cadmium |
| Shell Size and Insert Arrangement | C(13)-35 |
| Number of Contacts and Contact Size | 22 X 22D AWG |
| Contact Termination Type | Crimp |
| Contact Gender | Pin |
| Operating Temperature | -65°C // +175°C |
| Keying Rotation | B |
| Mating Cycle | 500 |
