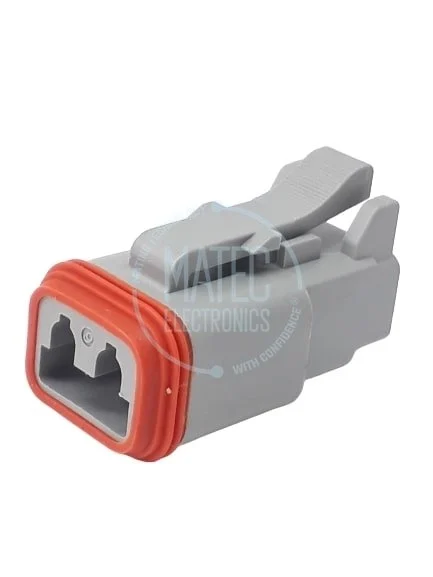

AT06-2SA
Amphenol’s environmentally sealed thermoplastic A Series™ product line includes AT, ATP, ATM and AHD Series. A series encompass a wide range of products serving not only variety of industrial applications such as Heavy Duty, Transportation, Diagnostic, Alternative Energy and Agricultural industries but certain military and aerospace applications as well. A series is a best cost-effective interconnect solution for harsh environment applications thanks to it’s superior IP rating sealing capabilit
0.00 ₺
0.00 ₺
Brand :
AMPHENOL
Stock Code :
AT062S
Stock Amount :
5615
pcs
| Brand | AMPHENOL |
| Connector Series | A Series |
| RoHS | YES |
| Connector Shell Style | Straight Plug |
| Connector Mounting Type | Cable Mount |
| Connector Mating Style | Push-Pull |
| Shell Material | Thermoplastic |
| Number of Contacts and Contact Size | 2 X 14-20 AWG |
| Contact Termination Type | Crimp |
| Contact Gender | Socket |
| Operating Temperature | -55°C // +125°C |
| Keying Rotation | A |
| Mating Cycle | 100 |
| Weight | - |
