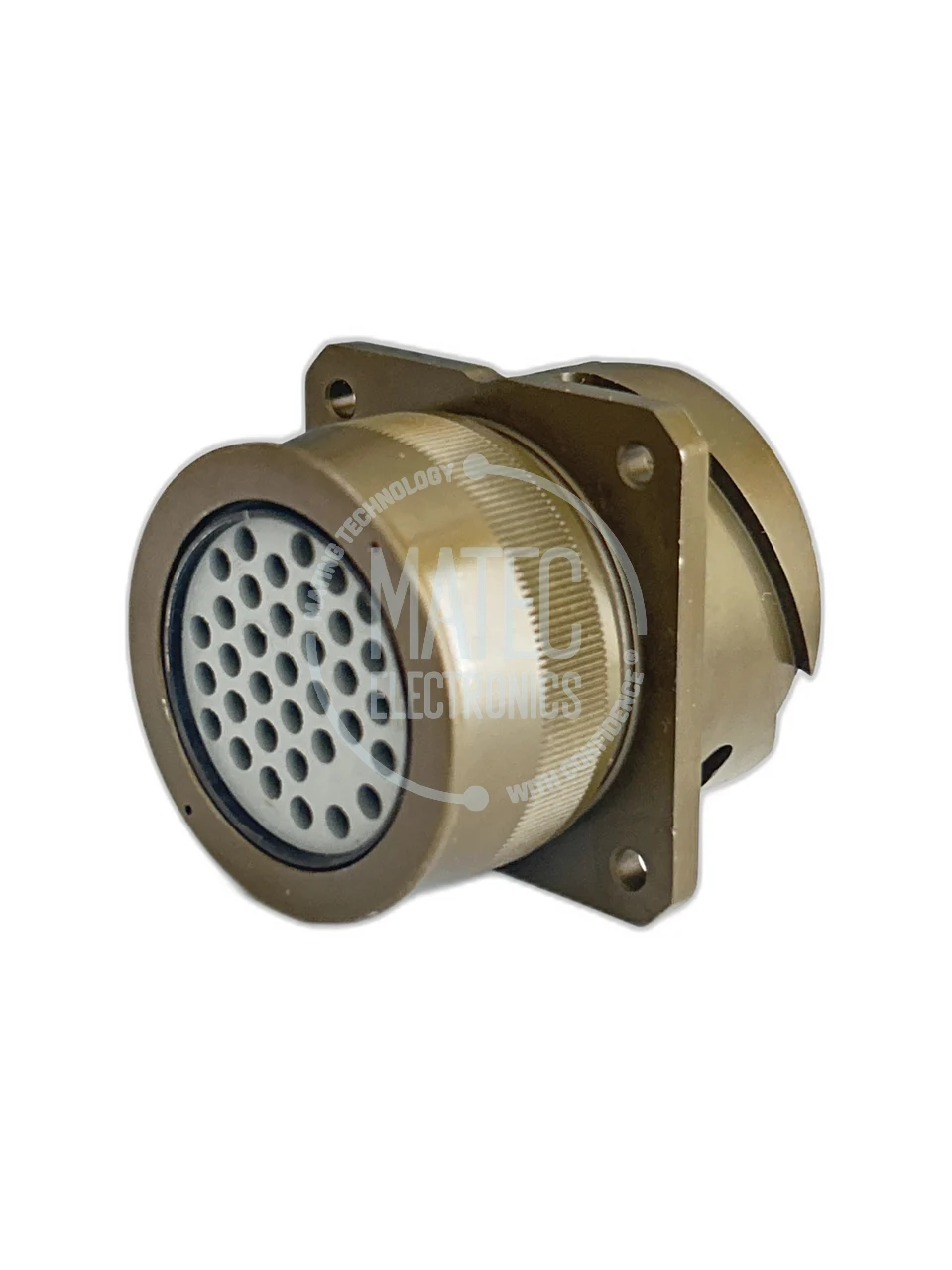

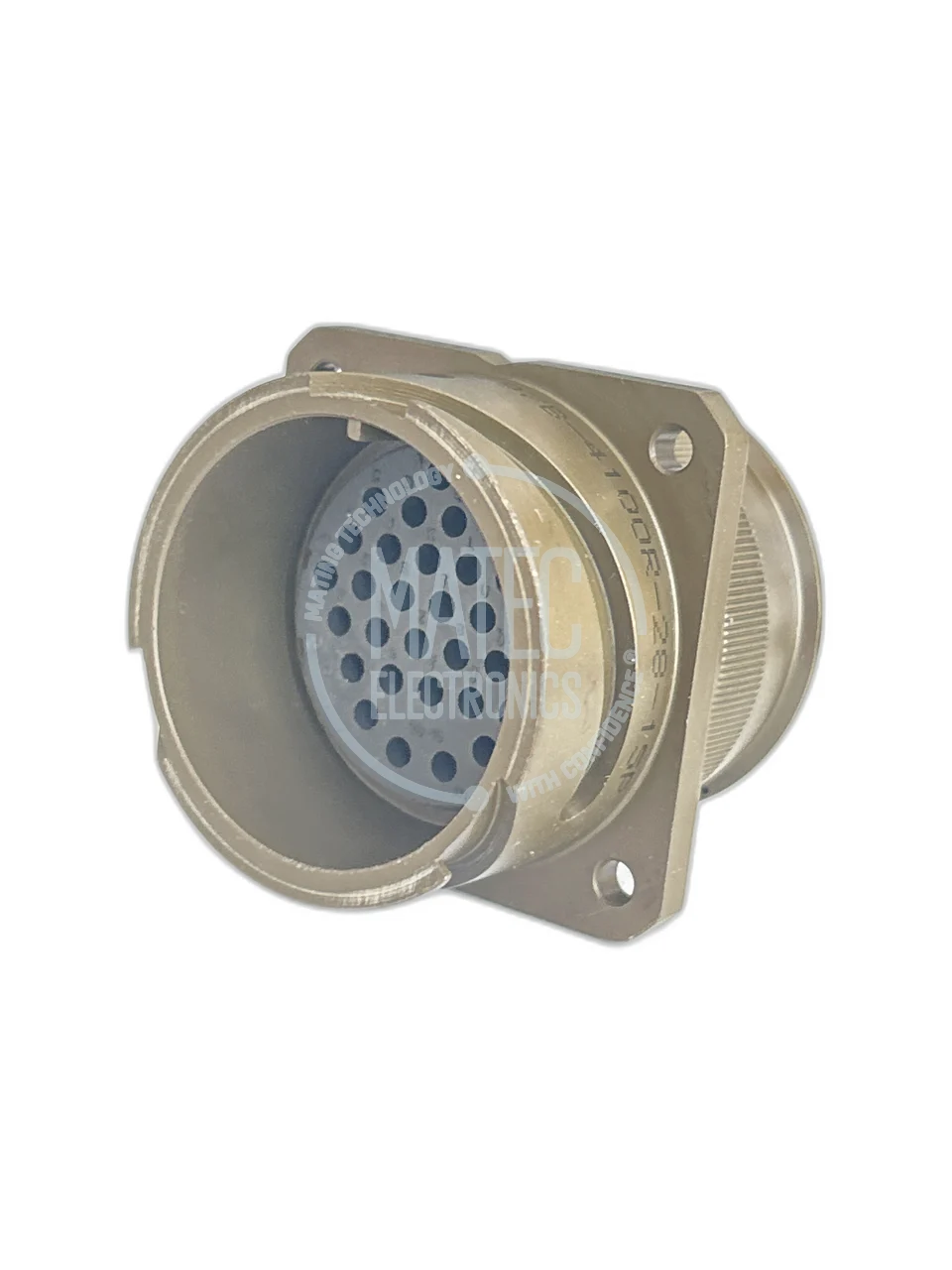

97B-4100R-28-15P
Amphenol 97B series is bayonet coupled connectors designed to meet the operating requirements of MIL-C-5015. Available in a variety of styles and classes, these connectors are primarily used in a range of military and industrial applications where specific degrees of environmental and EMI protections are required.
0.00 ₺
0.00 ₺
Brand :
AMPHENOL
Stock Code :
97B4100R2815P
Stock Amount :
6
pcs
| Brand | AMPHENOL |
| Connector Series | MIL-DTL-5015 |
| RoHS | NO |
| Connector Shell Style | Receptacle |
| Connector Mounting Type | Square Flange |
| Connector Mating Style | Reverse Bayonet |
| Shell Material | Aluminum |
| Shell Plating | Olive Drab Cadmium |
| Shell Size and Insert Arrangement | 28-15 |
| Number of Contacts and Contact Size | 35 X 16 AWG |
| Contact Termination Type | Crimp |
| Contact Gender | Pin |
| Operating Temperature | -55°C // +125°C |
| Keying Rotation | N |
| Mating Cycle | 500 |
| Backshell Type | R |
