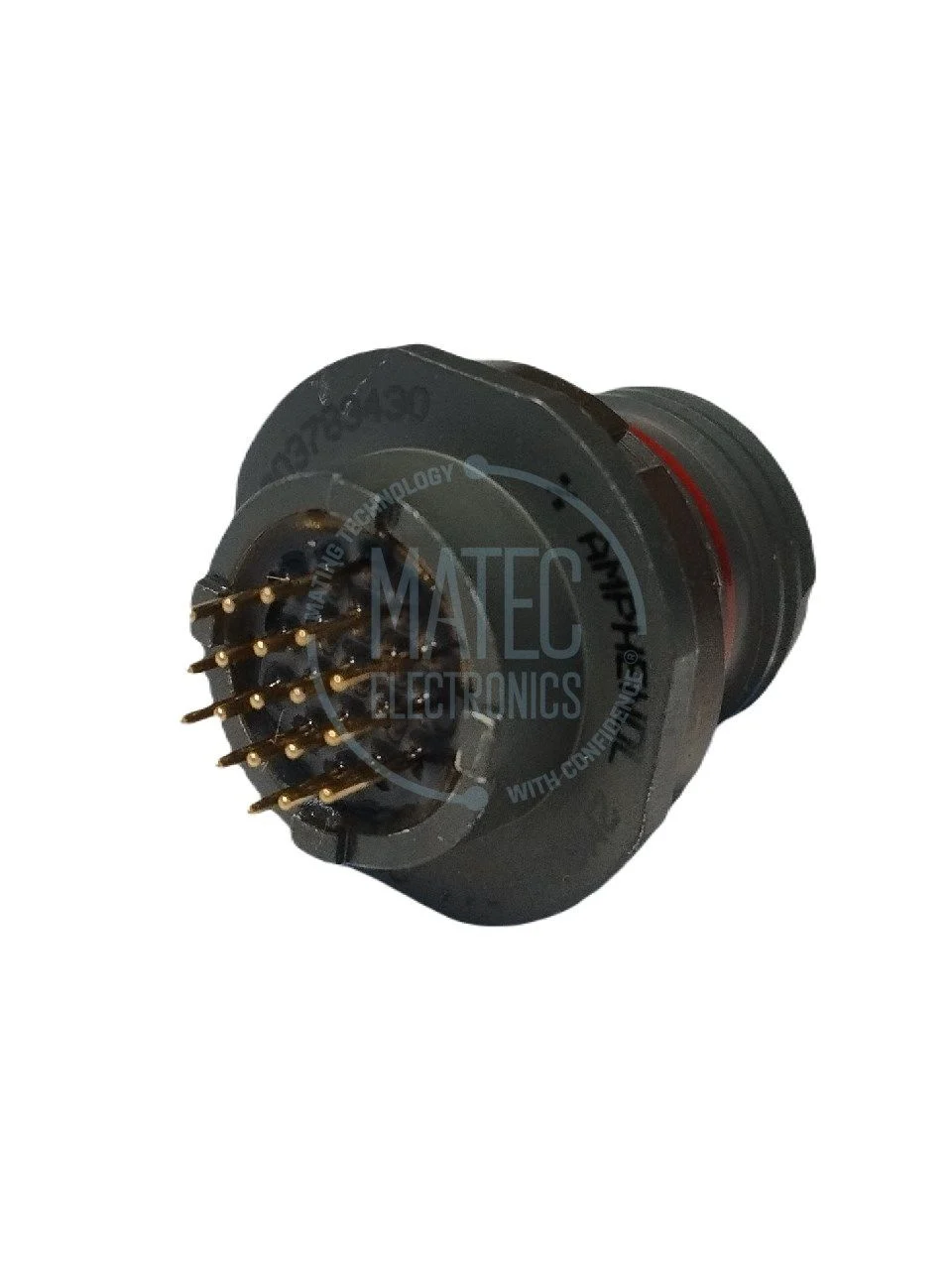

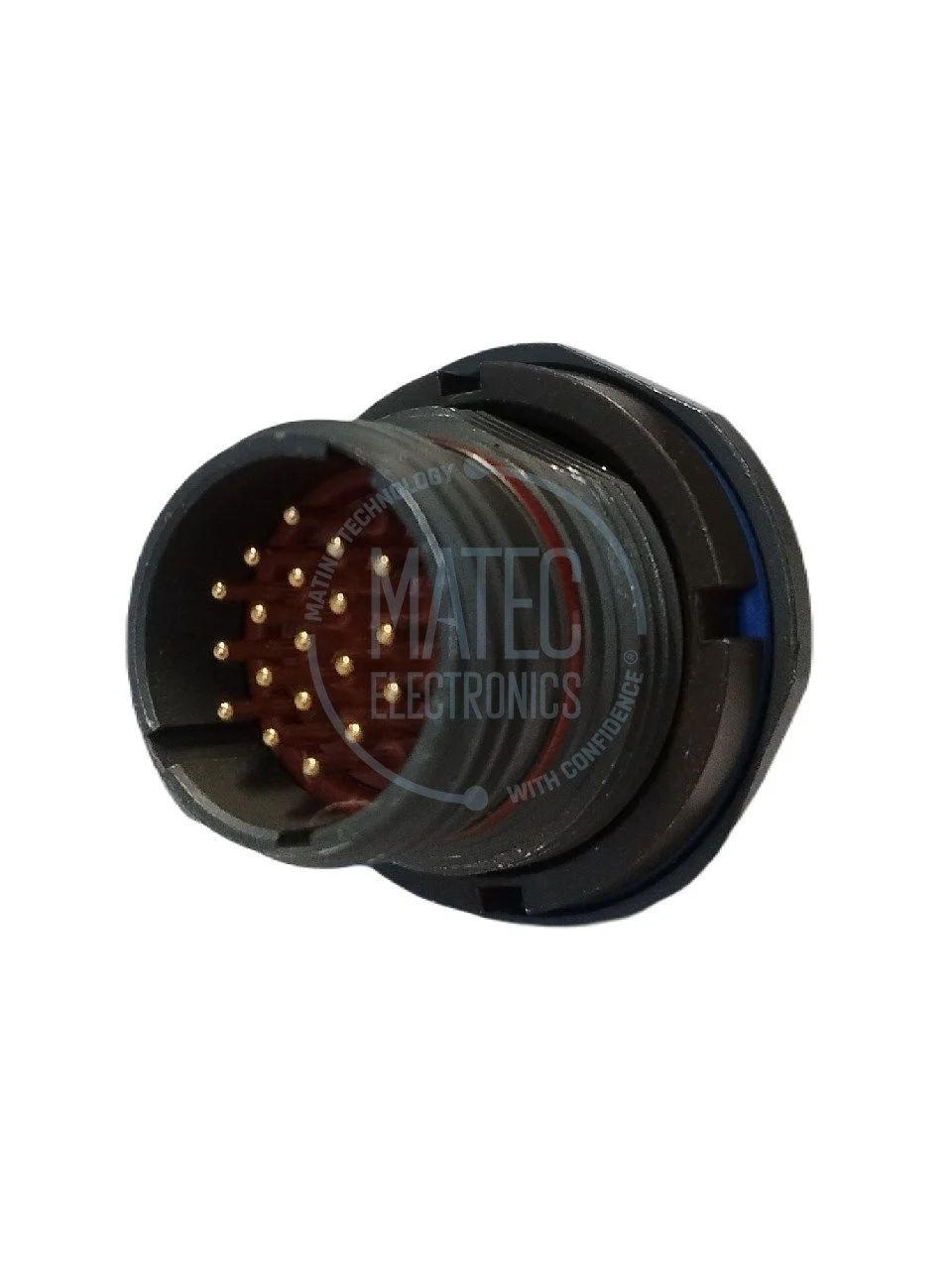

2M801-011-07NF9-19PA
Amphenol 2M ( Mighty Mouse ) Micro38999 Connector Series offers highest performance for applications requiring reduced size, weight and harshest environment resistance. This smaller, high density, lightweight connector series is designed and tested to Mil-Spec standards and comparable to MIL-DTL-38999 with reduced mechanical dimensions.
0.00 ₺
0.00 ₺
Brand :
AMPHENOL
Stock Code :
2M80101107NF919PA
Stock Amount :
2
pcs
| Brand | AMPHENOL |
| Connector Series | 2M Mighty Mouse Series |
| RoHS | NO |
| Connector Shell Style | Receptacle |
| Connector Mounting Type | Jam-Nut |
| Connector Mating Style | Threaded |
| Shell Material | Aluminum |
| Shell Plating | Olive Drab Cadmium |
| Shell Size and Insert Arrangement | 9-19 |
| Number of Contacts and Contact Size | 19 X 23 AWG |
| Contact Termination Type | PC-Tail |
| Contact Gender | Pin |
| Operating Temperature | -65°C // +150°C |
| Keying Rotation | A |
| Mating Cycle | 2000 |
| IP Class | - |
| Weight | - |
