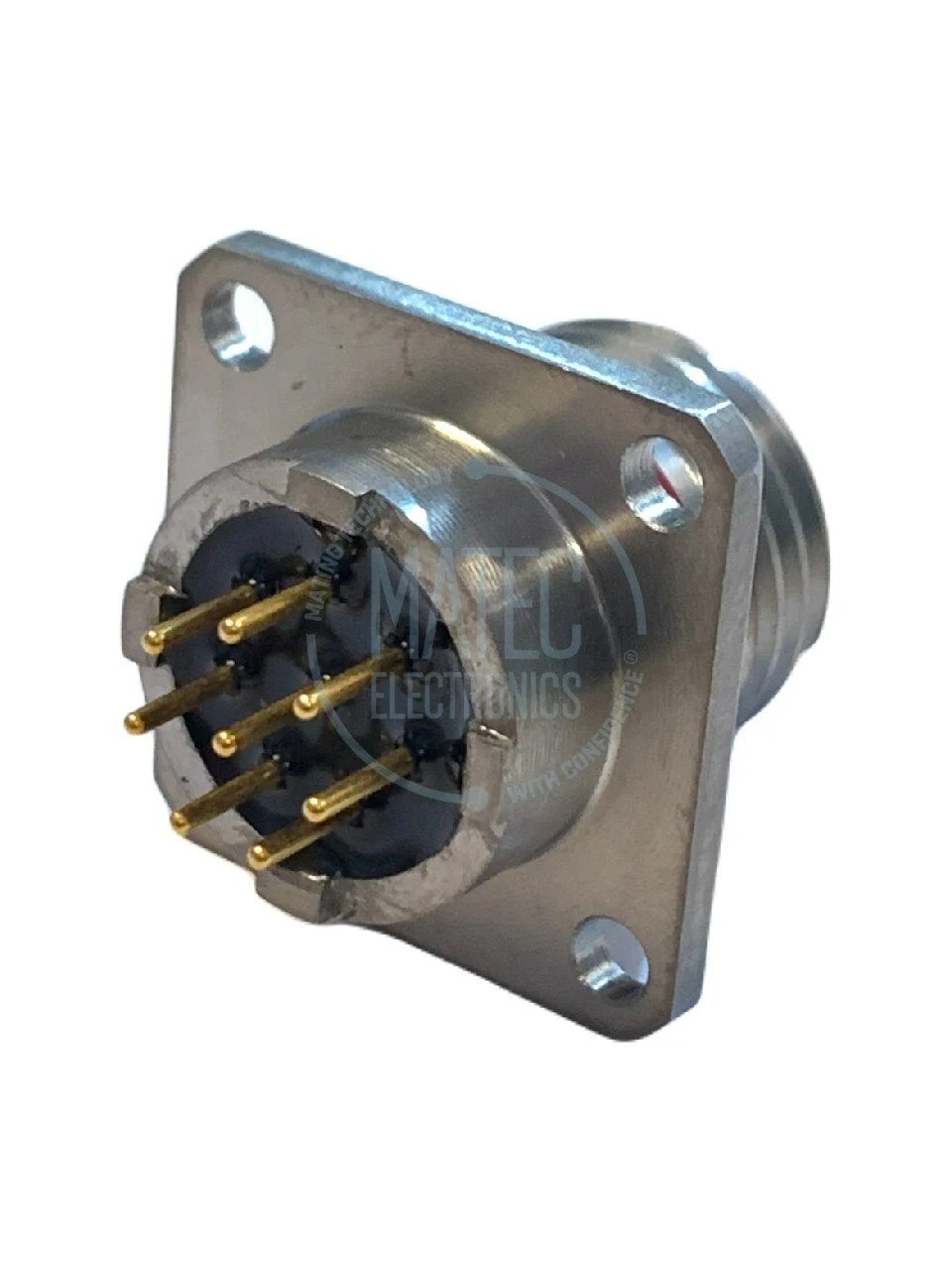

2M801-011-02Z18-28PA
Amphenol 2M ( Mighty Mouse ) Micro38999 Connector Series offers highest performance for applications requiring reduced size, weight and harshest environment resistance. This smaller, high density, lightweight connector series is designed and tested to Mil-Spec standards and comparable to MIL-DTL-38999 with reduced mechanical dimensions.
0.00 ₺
0.00 ₺
Brand :
AMPHENOL
Stock Code :
2M80101102Z1828PA
Stock Amount :
11
pcs
| Brand | AMPHENOL |
| Connector Series | 2M Mighty Mouse Series |
| RoHS | YES |
| Connector Shell Style | Receptacle |
| Connector Mounting Type | Square Flange |
| Connector Mating Style | Threaded |
| Shell Material | Stainless Steel |
| Shell Plating | Passivated Stainless Steel |
| Shell Size and Insert Arrangement | 8-28 |
| Number of Contacts and Contact Size | 8 X 20 AWG |
| Contact Termination Type | PC-Tail |
| Contact Gender | Pin |
| Operating Temperature | -65°C // +200°C |
| Keying Rotation | A |
| Mating Cycle | 2000 |
| IP Class | - |
| Weight | - |
